Sika® CarboDur® M

Sika® CarboDur® M

Pultruded Carbon Fibre Plates for Structural Strengthening as Part of the Sika® CarboDur® System- Type CLM(1) compliant to AS5100.8

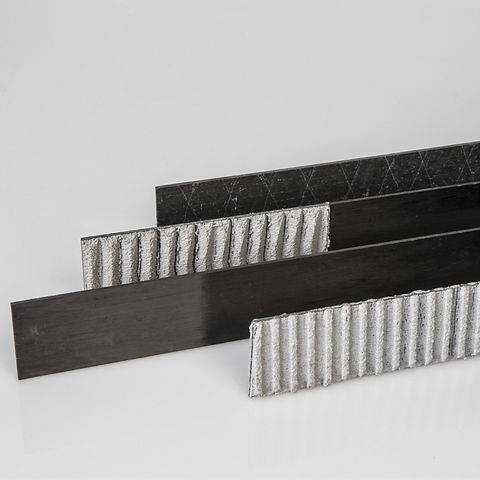

Sika® CarboDur® M plates are pultruded carbon fibre reinforced polymer (CFRP) laminates, designed for strengthening concrete, timber, masonry, steel and fibre reinforced polymer structures.
Sika® CarboDur® M plates are bonded onto the structure as externally bonded reinforcement using Sikadur®-30 epoxy resin based adhesive for normal, or Sikadur®-30 LP* epoxy resin based adhesive for elevated temperatures during application and / or service, long lead times and quantities apply.
Please refer to the relevant Product Data Sheet for more detailed information about each of these adhesives.

  • Combination of very high strength and high stiffness
  • Non-corroding
  • Excellent durability and fatigue resistance
  • Unlimited lengths, no joints required
  • Low system thickness, simple execution of plate intersections or crossings
  • Easy transportation (rolls)
  • Lightweight, very easy to install, especially overhead (without temporary support)
  • Minimum preparation of plate, applicable in several layers
  • Smooth edges without exposed fibres as result of production by pultrusion
  • Extensive testing and approvals available from many countries worldwide
Product Data Sheet Show all documents

Usage

Sika® CarboDur® systems are used to improve, increase or repair the performance and resistance of structures for:
Increased Load Carrying Capacity:
  • Increasing the load capacity of floor slabs, beams and bridge sections
  • For the installation of heavier machinery
  • To stabilise vibrating structures
  • For changes in building use
Damage to structural elements due to:
  • Deterioration of the original construction materials
  • Steel reinforcement corrosion
  • Accidents (Vehicle impact, earthquakes, fire)
Improvement of serviceability and durability:
  • Reduced deflection and crack width
  • Stress reduction in the steel reinforcement
  • Improved fatigue resistance
Change of the structural system:
  • Removal of walls and / or columns
  • Removal of floor and wall sections to create access / openings
Resistance to possible events:
  • Increased resistance to earthquakes, impact or explosion etc.
To repair design or construction defects such as:
  • Insufficient / inadequate reinforcement
  • Insufficient / inadequate structural depth

Advantages

  • Combination of very high strength and high stiffness
  • Non-corroding
  • Excellent durability and fatigue resistance
  • Unlimited lengths, no joints required
  • Low system thickness, simple execution of plate intersections or crossings
  • Easy transportation (rolls)
  • Lightweight, very easy to install, especially overhead (without temporary support)
  • Minimum preparation of plate, applicable in several layers
  • Smooth edges without exposed fibres as result of production by pultrusion
  • Extensive testing and approvals available from many countries worldwide

Packaging

Supplied in rolls of 100 m in non-returnable cardboard boxes. Material can be cut to order, lead times may apply.

Colour

Carbon fibre reinforced polymer with an epoxy matrix, black.

Product Details

Sustainability / Certifications / Approvals

APPROVALS / CERTIFICATES

  • Australia: AS5100.8- 2017 Bridge Design Part 8: Rehabilitation and strengthening of existing bridges.
  • Australia: Vic Roads Spec Section 688- Fibre Reinforced Polymer Composite Strengthening of Concrete Structures.
  • Slovakia: TSUS, Building Testing and research institutes,
  • Slovakia: Technical Approval TO-09/0080, 2009: Systémy dodatočného zosilňovania konštrukcií Sika® CarboDur® a SikaWrap®.
  • Poland: Technical Approval ITB AT-15-5604/2011: Zestaw wyrobów Sika® CarboDur® do wzmacniania i napraw konstrukcji betonowych
  • Poland: Technical Approval IBDiM Nr AT/2008-03-0336/1 „Płaskowniki. pręty, kształtki i maty kompozytowe do wzmacniania betonu o nazwie handlowej: Zestaw materiałów Sika® CarboDur® do wzmacniania konstrukcji obiektów mostowych

  • France: CSTB - Avis Technique 3/16-875, Sika CarboDur, SikaWrap

  • Fib, Technical Report, bulletin 14: Externally bonded FRP reinforcement for RC structures, July 2001.
  • USA: ACI 440.2R-08, Guide for the Design and construction of Externally Bonded FRP Systems for strengthening concrete structures, July 2008.
  • UK: Concrete Society Technical Report No. 55, Design guidance for strengthening concrete structures using fibre composite material, 2000.
  • Switzerland: SIA 166, Klebebewehrungen, 2003 /2004.
  • Italy: CNR-DT 200 R1/2013 - Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Existing Structures
Product Information

Fibre volume content

> 68%

Shelf life

Unlimited, provided the storage conditions are met.

Storage conditions

Store in original, unopened, sealed and undamaged packaging in dry conditions at temperatures of max. +50 °C. Protect from direct sunlight.

Transportation: only in the original packaging, or otherwise adequately protected against any mechanical damage

Dimensions

Type Sika® CarboDur® M

Width

Thickness

Cross section area

91490 mm1.4 mm126 mm2
1214120 mm1.4 mm168 mm2

* limited stocks available locally. Other sizes available on request. Minimum quantities may apply.
System information

System structure

The system build-up and configuration as described must be fully complied with and may not be changed.
Resin Adhesive - Sikadur®-30 or Sikadur®-30 LP*. Sikadur 30LP is a non stock item, lead times and minimum quantities apply.
Structural strengthening Carbon plates – Sika® CarboDur® M.
For detailed information on Sikadur®-30 and Sikadur®-30 LP*, together with the application details, please refer to the Sikadur®-30 or Sikadur®-30 LP* Product Data Sheet and the “Method Statement Sika® CarboDur® Externally Bonded Reinforcement” Ref: 850 41 05.
Technical Information

Laminate tensile strength

Mean value

3 500 N/mm2

5 % Fractile-value

3 200 N/mm2

Values in the longitudinal direction of the fibres

Laminate modulus of elasticity in tension

Mean value

210 000 N/mm2

5 % Fractile-value

205 000 N/mm2

Values in the longitudinal direction of the fibres

Laminate elongation at break in tension

Mean value

1.7 %

Values in the longitudinal direction of the fibres

Glass transition temperature

>100 °C

(EN 61006)



Application

Consumption

Consumption

Width of Sika® CarboDur® M plate

Typical consumption of

Sikadur®-30*

50 mm

0.20 − 0.28 kg/m

60 mm

0.24 − 0.32 kg/m

90 mm0.40 − 0.56 kg/m
100 mm0.44 − 0.64 kg/m
120 mm0.45 − 0.80 kg/m

*Note: Consumption is for standard application only. Rough or uneven substrate surfaces, plate crossings, loss and wastage can lead to a higher adhesive consumption of up to 20 %.
Application steps

SUBSTRATE QUALITY

Sika® CarboDur® plates externally bonded to the concrete surface
Recommended minimum concrete pull-off strength after surface preparation:

  • Mean: 2.0 N/mm2
  • Minimum: 1.5 N/mm2

The effective concrete pull-off strength after surface preparation has to be verified.
If concrete pull-off strength is below the stated minimum requirements, alternative Sika solutions are available:

  • CarboDur® applied in slots as near surface mounted (NSM) reinforcement
  • SikaWrap® fabrics: Please refer to the Product Data Sheet for the SikaWrap® fabrics

Concrete must generally be older than 28 days (dependent on curing conditions and the type of concrete etc.)


Sika® CarboDur® externally bonded to other substrates
For application of CarboDur® plates to all other substrates (brick, stone, steel, wood, fibre reinforced polymer etc.) please refer to the “Method Statement for Sika® CarboDur® Externally Bonded Reinforcement” Ref: 850 41 05. Contact Sika technical service for detailed advice.

SUBSTRATE PREPARATION

Concrete must be cleaned and prepared to achieve a laitance and contaminant free, open textured surface.
Please also refer to the “Method Statement Sika® CarboDur® Externally Bonded Reinforcement” Ref: 850 41 05.
