Sika® Backer Rod Fire
Backing rod for fire resistant joint sealing

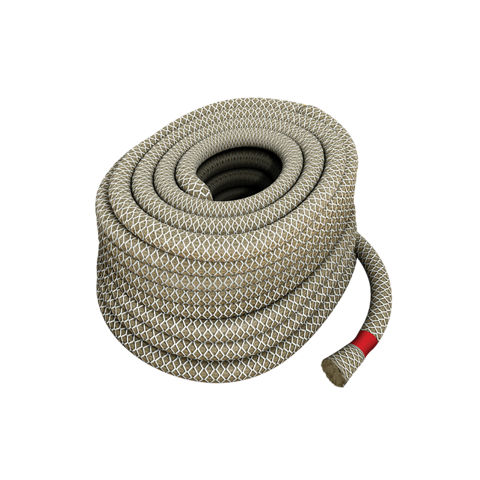

Sika® Backer Rod Fire is a circular, compressible, mineral wool based backing rod wrapped with a glass fibre yarn.
- Easy to apply
- Adapts to joint width and alignment irregularities
- Helps to regulate the sealant profile
*Sika® Backer Rod Fire is a made to order product. If you wish to place an order, please contact your local hardware store or Sika sales representative.
Usage
Sika® Backer Rod Fire may only be used by experienced professionals.- Designed as a backing rod for fire resistant joint sealing in horizontal and vertical building structure applications
- Applied in conjunction with SikaHyflex®-250 Facade.
Advantages
- Easy to apply
- Adapts to joint width and alignment irregularities
- Helps to regulate the sealant profile
Packaging
| Diameter | Roll length |
| 12 mm | 50 m |
| 15 mm | 50 m |
| 20 mm | 30 m |
| 30 mm | 30 m |
| 40 mm | 30 m |
| 50 mm | 25 m |
| 60 mm | 25 m |
Refer to current price list for packaging variations.
Colour
Circular profile
Product Details
APPROVALS / CERTIFICATES
- CE marking and Declaration to Performance to European Technical Assessment ETA 17/0980 based on EAD 350141-00-1106:2017 – Fire stopping and fire sealing products, linear joint and gap seal
- Resistance to fire classification EN 13501-2, Warringtonfire, Report No. 405212
- Reaction to fire classification, EN 13501-1, Exova Warringtonfire, Report No. 391173
- Resistance to fire classification, AS 1530.4, Exova Warringtonfire, Report No. FAS190278
Composition
Mineral fibre wool wrapped in a glass fibre yarn
Shelf life
72 months from the date of production
Storage conditions
The product must be stored in original, unopened and undamaged packaging in dry conditions at temperatures between -20 °C and +70 °C. Always refer to packaging.
Density
| ~250 kg/m3 | (EN 1602) |
Dimensions
Note: Reference must be made to limitations regarding dimensions and configuration described in the EN 13501-2 classification report and / or ETA 17/0980
- Sika® Backer Rod Fire must be installed at a minimum compression rate of 15 %.
- Select the correct diameter using the following table:
| Joint width | Diameter |
| 7–10.2 mm | 12mm |
| 9– 12.7 mm | 15 mm |
| 12–17mm | 20 mm |
| 16–25.5 mm | 30 mm |
| 24–34 mm | 40 mm |
| 32–42.5 mm | 50 mm |
| 40–51 mm | 60 mm |
Ensure the depth of the backing rod and the required depth of the sealant is considered in the joint design stage.
Reaction to fire
A1 | (EN 13501-1) |
