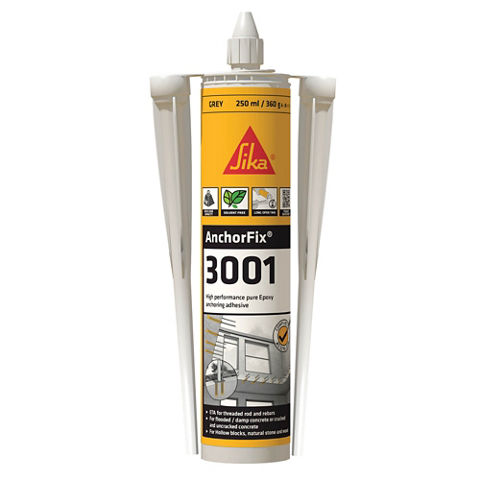

Sika AnchorFix®-3001
EPOXY HIGH PERFORMANCE CHEMICAL ANCHORING ADHESIVE
Sika AnchorFix®-3001 is an epoxy resin based, 2-part, thixotropic, 1:1 mixing ratio, high performance anchoring adhesive. It is specifically designed for anchoring threaded rods and reinforcement bars in both cracked and un-cracked dry or damp concrete.
- Long open time
- Can be used in damp concrete
- High load capacity
- ETA to ETAG 001 for anchoring in cracked concrete
- ETA to ETAG 001 for rebar connections
- ESR to AC308 by ICC-ES, anchoring in cracked concrete for static, wind and earthquake loading
- Seismic tested (C1)
- Suitable for contact with drinking water
- Fire resistant
- Styrene-free
- Good adhesion to the substrate
- Shrinkage-free hardening
- Standard sealant guns can be used (250 ml cartridge)
- Low wastage
Usage
Anchoring adhesive for fixing of non-expanding anchors in the following:Structural work
- Rebar / steel reinforcement anchoring in new and refurbishment works
- Threaded rods
- Bolts and special fastening / fixing systems
- Handrails, balustrades and supports
- Railings
- Window and door frames
- Concrete (cracked and un-cracked)
- Hollow and solid masonry
- Wood
- Natural and reconstituted stone
- Solid rock
Advantages
- Long open time
- Can be used in damp concrete
- High load capacity
- ETA to ETAG 001 for anchoring in cracked concrete
- ETA to ETAG 001 for rebar connections
- ESR to AC308 by ICC-ES, anchoring in cracked concrete for static, wind and earthquake loading
- Seismic tested (C1)
- Suitable for contact with drinking water
- Fire resistant
- Styrene-free
- Good adhesion to the substrate
- Shrinkage-free hardening
- Standard sealant guns can be used (250 ml cartridge)
- Low wastage
Packaging
| 250 ml standard cartridge | 12 cartridges per box pallet: 75 boxes |
Colour
| Part A | off-white |
| Part B | dark grey / black |
| A+B mixed | grey |
Product Details
SUSTAINABILITY
- Conformity with LEED v4 MRc 2 (Option 1): Building Product Disclosure and Optimization – Environmental Product Declarations
- Conformity with LEED v4 MRc 4 (Option 2): Building Product Disclosure and Optimization - Material Ingredients
APPROVALS / CERTIFICATES
- Complies to NCC 2019 reference to AS 5216:2018 - Design of post-installed and cast-in fastenings in concrete
- Potable Water approved to AS4020:2018 - Testing of products for use in contact with drinking water.
- CE Marking and Declaration of Performance to ETA 14/0157, based on ETAG 001 Part 1 and Part 5 - Bonded injection type anchor for use in cracked and uncracked concrete for a service life of 50 and/or100 years
- CE Marking and Declaration of Performance to ETA 14/0368, based on ETAG 001 Part 1 and Part 5 - Post installed rebar connections
- Adhesive Anchors for Cracked and Un-cracked Concrete IBC/IRC, Sika AnchorFix®-3001, ICC-ES, Evaluation report No. ESR-3608
- Drinking Water System Components NSF/ANSI 61, Sika AnchorFix®-3001, IAPMO R&T, Certificate No. K-8319
- Fire Testing ISO 834-1, Sika AnchorFix®-3001, CSTB, Test report No. 26054326/B
Composition
Epoxy
Shelf life
24 months from date of production
Storage conditions
The product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +10 °C and +25 °C. Always refer to packaging.
Density
| A+B mixed | ~1.49 kg/l |
System structure
Ancillary products:
- Sika AnchorFix® Flexible Extensions
- Sika AnchorFix® Hole Cleaning Brushes-Steel
- Sika AnchorFix® Static Mixers -Nozzles
- Sika AnchorFix® Straight Extensions
- Sika AnchorFix® Perforated Sleeves
Compressive strength
| ~85 N/mm2 (7 days, +20 °C) | (ASTM D 695) |
Modulus of elasticity in compression
| ~5 000 N/mm2 (7 days, +20 °C) | (ASTM D 695) |
Tensile strength in flexure
| ~45 N/mm2 (7 days, +20 °C) | (ASTM D 790) |
Tensile strength
| ~23 N/mm2 (7 days, +20 °C) | (ASTM D 638) |
Service temperature
| Long term | -40 °C min. / +40 °C max. |
| Short term (1–2 hours) | +80 °C |
Application
Mixing ratio
Part A : Part B = 1 : 1 by volume
Layer thickness
~7 mm max
Sag flow
Non-sag, including overhead
Material temperature
10 °C min. / +30 °C max.
Ambient air temperature
+5 °C min. / +40 °C max.
Dew point
Beware of condensation. Substrate temperature during application must be at least +3 °C above dew point.
Substrate temperature
+5 °C min. / +40 °C max.
Curing time
| Temperature | Open time - Tgel | Curing time - Tcur |
| +40 °C | 3 minutes | 3 hours |
| +35 °C to +40 °C | 4 minutes | 4 hours |
| +30 °C to +35 °C | 6 minutes | 5 hours |
| +25 °C to +30 °C | 8 minutes | 6 hours |
| +20 °C to +25 °C | 11 minutes | 7 hours |
| +15 °C to +20 °C | 15 minutes | 8 hours |
| +10 °C to +15°C | 20 minutes | 12 hours |
| +5 °C to +10 °C | —* | 24 hours |
* Minimum cartridge temperature: +10 °C
SUBSTRATE QUALITY
Mortar and concrete must be at the required design strength.
Substrate tensile / compressive strengths (concrete, masonry, natural stone) must be confirmed by testing.
The anchor hole must always be clean, free from oil and grease etc.
Loose particles must be removed from the holes.
Threaded rods and rebar's must be cleaned thoroughly and free from dirt, oil, grease, corrosion products or any other substances and particles which could affect adhesion.
MIXING
Preparing cartridge: 250 ml
|
| 1. Unscrew and remove the cap |
|
| 2. Pull out the plug |
|
| 3. Screw on the static mixer |
|
| 4. Place the cartridge into the application gun ready for use |
Preparing cartridge: 400, 600 & 1500 ml
|
| 1.Unscrew the cap |
|
| 2. Pull out the red plug |
|
| 3. Screw on the static mixer |
|
| 4. Place the cartridge into the application gun ready for use |
When the work is interrupted the static mixer nozzle can remain on the cartridge after the gun pressure has been released. If the resin has hardened in the nozzle when work is resumed, a new nozzle must be attached.
CLEANING OF EQUIPMENT
Clean all tools and application equipment with Sika® Colma Cleaner immediately after use. Hardened material can only be removed mechanically.
