SikaGrout® GP AU
GENERAL PURPOSE, "CLASS A" PUMPABLE, SHRINKAGE-COMPENSATED CEMENTITIOUS GROUT
SikaGrout® GP AU is a pumpable, shrinkage-compensated, flowable cementitious "Class A" grout with extended working time to suit local ambient temperatures.
▪ Flowable consistency (according to mix)
▪ Rapid strength development
▪ Non-corrosive
▪ Non-toxic
▪ Iron and chloride free
▪ Shrinkage-compensated
▪ Good pumping properties
Usage
SikaGrout® GP AU is a general purpose grout suitable for the following applications:- General purpose grouting
- Grouting works for machine foundations, anchor bolts etc.
- Precast grouting
- Filling of cavities, gaps, recesses, etc.
Advantages
▪ Easy to mix and apply▪ Flowable consistency (according to mix)
▪ Rapid strength development
▪ Non-corrosive
▪ Non-toxic
▪ Iron and chloride free
▪ Shrinkage-compensated
▪ Good pumping properties

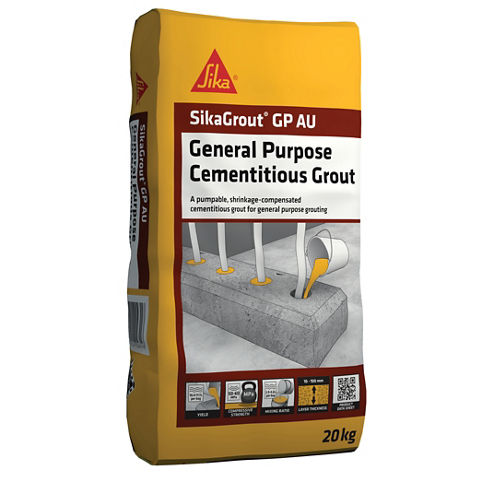

Packaging
20 kg bag
Colour
Grey premixed powder
Product Details
CERTIFICATES AND TEST REPORTS
Department of Main Roads Qld (TMR) 2019, Product Index for Bridges and Other Structures, Section 5. Registered and Conforming Products, 5.33 Repair Materials (Concrete) – Grouts
Shelf life
9 months from the date of production
Storage conditions
Store properly in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +10 °C and +35 °C. Protect from direct sunlight.
Maximum grain size
Dmax: 0.4 mm
Density
~ 2.2 kg/l (depending on consistency and temperature)
Compressive strength
| Stiff | Plastic | Flowable | |
| 1 day | ~ 25 MPa | ~ 20 MPa | ~ 12 MPa |
| 7days | ~ 50 MPa | ~ 45 MPa | ~ 35 MPa |
| 28 days | ~ 60 MPa | ~ 55 MPa | ~ 50 MPa |
Material and curing conditions at 23°C / 50% r.h.
Above results based on 50mm x 50mm cube specimens
Expansion
| max 3.0 % (Flowable consistency) | (AS 1478.2-2005) |
Electrical resistivity
| 7 days | ~ 4,000 Ω.cm |
| 28 days | ~ 4,500 Ω.cm |
| 56 days | ~ 4,600 Ω.cm |
| 90 days | ~ 5,000 Ω.cm |
Application
Layer thickness
| Consistency | Thickness |
| Stiff & Plastic | 10 mm min. / 100 mm max. |
| Flowable | 10 mm min. / 50 mm max. |
Ambient air temperature
+10 °C min. / +35 °C max.
Mixing ratio
Water addition per 20 kg bag (litre/s)
| Stiff | Plastic | Flowable |
| 2.9 - 3.0 | 3.2 - 3.4 | 4.0 - 4.6 |
These mix ratios are a guide and preliminary trials at local temperatures / humidity conditions are recommended.
Substrate temperature
+10 °C min. / +35 °C max.
Pot Life
30 mins approx.
Setting time
| Temperature | Initial Set | Final Set |
| 23 °C | ~ 3 hrs | ~ 4 hrs 45 mins |
Consumption
Approximate number of bags per 1.0 m3
| Stiff | Plastic | Flowable |
| 96 | 94 | 90 |
Yield
| Stiff | Plastic | Flowable |
| 10.4 litres | 10.6 litres | 11.1 litres |
MIXING
Place about 70–80 % of the premeasured clean water (depending on consistency required – refer to “Mix Ratio”) into a clean container and gradually add the whole bag of SikaGrout® GP AU into it while continuously mixing. Add the remaining water until the desired consistency is obtained. Mix for 3–5 minutes with a low speed drill (500 rpm max.).
APPLICATION
After mixing, stir lightly with a spatula for a few seconds to release any entrapped air. The grout is then poured immediately into the prepared formwork. When carrying out baseplate grouting, ensure sufficient pressure head is maintained for uninterrupted mortar flow. For formwork repair, the prepared formwork must be firmly in place and kept watertight. When placing grout over a large area, it is important to maintain a continuous flow throughout. Work sequence must be properly organised to ensure an uninterrupted flow. In large areas, SikaGrout® GP AU may be pumped using heavy duty diaphragm pumps. Screw feed and piston pumps may also be used.
Specific Areas of Application
| Grouting under baseplate | Flowable consistency |
| Formwork grouting - pouring method | Flowable consistency |
| Formwork grouting - pre-packed method | Flowable / Plastic consistency |
| Grouting anchor bolts | Plastic / Stiff consistency |
| Dry packed / Precast grouting | Stiff consistency |
Grouting large volumes: For sections thicker than 100 mm, it is necessary to fill ikaGrout® GP AU with graded 10 mm silt free aggregates o minimise temperature rise generated during the during stage. The quantity of aggregates should not exceed 1 part aggregates to 1 part SikaGrout® GP AU by weight. For such mixes, a conventional concrete mixer and pump may be used. To further ensure that air entrapped during mixing is allowed to fully escape, it may be necessary to make breather holes. Use steel rods or chains to assist the flow of grout where necessary. Preliminary trials are recommended.
CURING TREATMENT
When formwork type repair is used, leave the formwork in place for at least 3 days. Upon removal of the formwork, cure the exposed surfaces
immediately with Antisol® curing compound or use other approved curing methods.
CLEANING OF EQUIPMENT
Clean all tools and application equipment with water immediately after use. Hardened or cured material can only be mechanically removed.
