SikaGrout® Deep Pour

SikaGrout® Deep Pour

FLOWABLE, PRECISION CEMENTITIOUS GROUT FOR DEEP POURS UP TO 500 MM

SikaGrout®-Deep Pour is a ready mixed, high quality, Portland cement grout that expands in two stages (Class A and C), to counteract the shrinkage normally associated with Portland cement grouts.
SikaGrout® Deep Pour is a blend of Portland cement, carefully selected and graded aggregates and Sika Admixtures, enabling it to achieve high strengths in short times, making SikaGrout® Deep Pour suitable for grouting of large sections and deep pours of up to 500mm.

  • Shrinkage compensating properties,
  • High early strengths.
  • High 28 day strengths.
  • Good flow characteristics.
  • Adjustable consistency.
  • Good impact and thermal resistance.
  • Non corrosive to steel or iron.
  • Lab tested in accordance with AS 1478.2
Product Data Sheet Show all documents

Usage

  • Mass grouting/concreting
  • Machine bedplates
  • Anchor bolts.
  • Bridge bearing pads.
  • Pre-cast concrete sections.


Advantages

  • Shrinkage compensating properties,
  • High early strengths.
  • High 28 day strengths.
  • Good flow characteristics.
  • Adjustable consistency.
  • Good impact and thermal resistance.
  • Non corrosive to steel or iron.
  • Lab tested in accordance with AS 1478.2

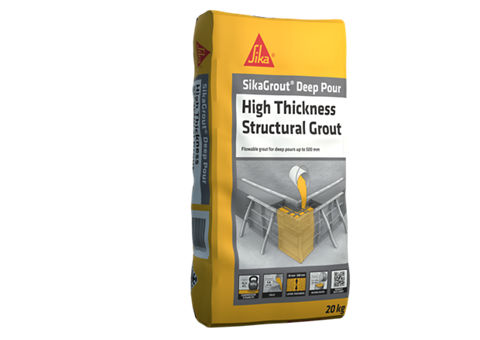

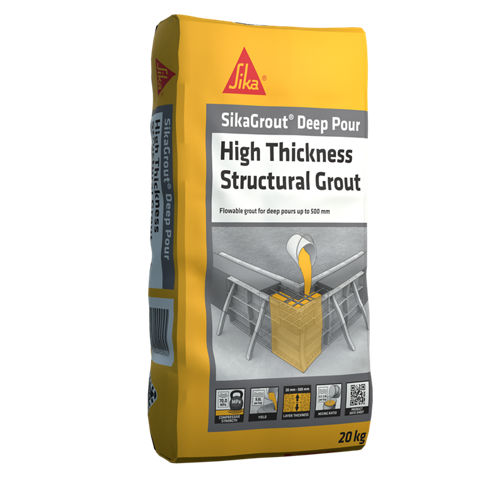

Packaging

20 kg bags

Colour

Grey powder

Product Details

Sustainability / Certifications / Approvals

CERTIFICATES AND TEST REPORTS

  • Qld Roads (TMR) Section 5. Registered and Conforming Products. Part 5.3 Repair Grouts
  • RTA Rapid Mortar Bar Test (RTA T363) - Alkali Reactive Particles (Non-Reactive).
Product Information

Composition

Cement, selected aggregates and special additives

Shelf life

9 months

Storage conditions

Store properly in undamaged original sealed packaging, in dry cool conditions.

Maximum grain size

Dmax: 4.0 mm

Density

~ 2,300 kg/m3 Fresh mortar density

Soluble chloride ion content

≤ 0.05%

(EN 1015-17)


Technical Information

Compressive strength

1 day

~ 12.0 MPa

3 days

~ 30.0 MPa

7 days

~ 50.0 MPa

28 days~ 70.0 MPa

Material and curing conditions at 23°C / 50% r.h.
Above results based on 50x50mm cube specimens

Splitting tensile strength

28 days

~ 5.0 MPa

Electrical resistivity

7 days

~ 14,000 Ω.cm

28 days

~ 39,000 Ω.cm

56 days

~ 53,000 Ω.cm

90 days~ 64,000 Ω.cm

Application

Application Information

Layer thickness

min. 20 mm / max. 500 mm

For application greater than 500 mm in depth, Add a clean, well graded and smooth aggregates to reduce the exothermic heat.

Flowability

~ 500 mm (Flow trough)

(AS 1478.2:2005)

Ambient air temperature

+5 °C minimum; +35 °C maximum

Mixing ratio

2.5 - 2.8 litres of water for 20kg powder

Substrate temperature

+5 °C minimum; +35 °C maximum

Pot Life

~30 minutes at +20°C

Setting time

Temperature

Initial Set

Final Set

23ºC

~ 4 hrs 40 mins

~ 7 hrs 45 mins
Consumption

Consumption

Approximately 102 bags per 1m3

Yield

20 kg of powder yields approximately 9.8 litres of grout
Application steps

MIXING

SikaGrout® Deep Pour must be mechanically mixed using a mechanical grout mixer and suitable mixing container. It is recommended to mix a full bag in clean container using an electric drill / spiral drill and spiral mixer at a speed of approximately 500 rpm.

Pour the correct amount of water into a suitable clean mixing container. While stirring slowly with drill and spiral mixer, add the complete bag of powder into the water. Mix continuously for 3-5 minutes to achieve a uniform and lump free smooth consistency.

Do not add more water than the maximum specified.

APPLICATION

SikaGrout® Deep Pour can be placed by gravity flow or by pump. It is essential that proper placing on the job site is practised to ensure placement is completed without problems. Sufficient labour, grout and equipment must be present to ensure continuous placement.

Gravity Flow

Mixed grout should be poured one side of the void to avoid air entrapment. Grout is best poured over short distances to ensure this. Use a suitable header box, maintaining the grout head at all times to ensure continuous flow. To facilitate grout compaction and top plate contact, use rodding, tamping or flexible strapping in short strokes while maintaining an adequate head of grout. Do not vibrate as this will cause segregation. Any adjacent machinery or equipment causing vibration should be shut down until initial set (5-6 hrs).

Pumping

When pumping SikaGrout-Deep Pour, ensure the pump is suitable for the grout consistency and for the distance and height it is to be pumped. A positive displacement pump is recommended.



Place grout by pumping into the farthest corner, filling the space gradually. Ensure that air is not entrapped under the base plate. Maximum aggregate size is 5mm. Ensure that selected pump is suitable for pumping this size of aggregate.

CURING TREATMENT

Suitable curing methods such as plastic sheet, wet hessian, liquid membrane etc. must be used to protect the freshly applied grout from the drying effects of sun and wind. Curing must commence immediately after placement, and continue for at least 7 days. Curing is vital to the ultimate performance of grout as it allows optimum strength development and ensures tight contact with the baseplate.

CLEANING OF EQUIPMENT

Clean all tools and application equipment with water immediately after use. Hardened material can only be mechanically removed.
