SikaGrout®-212 HP

SikaGrout®-212 HP

DUAL SHRINKAGE COMPENSATED HIGH STRENGTH CEMENTITIOUS GROUT FOR APPLICATIONS FROM 10MM TO 100MM.

SikaGrout-212 HP is a cementitious, non-shrink, high performance grout that expands in two stages in both the plastic and hardened states (class A and C) to counteract the shrinkage normally associated with cement grouts.

Characteristics and advantages include:
  • Shrinkage compensating properties, classed as a non-shrink grout as per CRD-C 621-81.
  • High early strengths.
  • High 28 day strengths.
  • Flowable consistency.
  • Adjustable consistency.
  • Formulated to not segregate or bleed.
  • Excellent impact and thermal resistance.
  • Non corrosive to steel or iron.
  • Lab tested in accordance with AS 1478.2
Product Data Sheet Show all documents

Usage

SikaGrout 212HP is used for flowable grouting applications. Typical applications may include:
  • Machine baseplates
  • Anchor bolts.
  • Bridge bearing pads and shear key grouting.
  • Pre-cast concrete sections.
  • Cavities, gaps and recesses.
  • High performance grouting.


Advantages

Characteristics and advantages include:
  • Shrinkage compensating properties, classed as a non-shrink grout as per CRD-C 621-81.
  • High early strengths.
  • High 28 day strengths.
  • Flowable consistency.
  • Adjustable consistency.
  • Formulated to not segregate or bleed.
  • Excellent impact and thermal resistance.
  • Non corrosive to steel or iron.
  • Lab tested in accordance with AS 1478.2

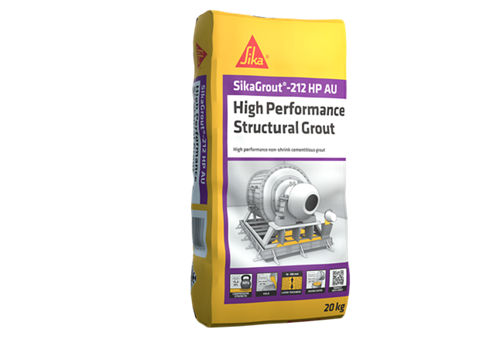

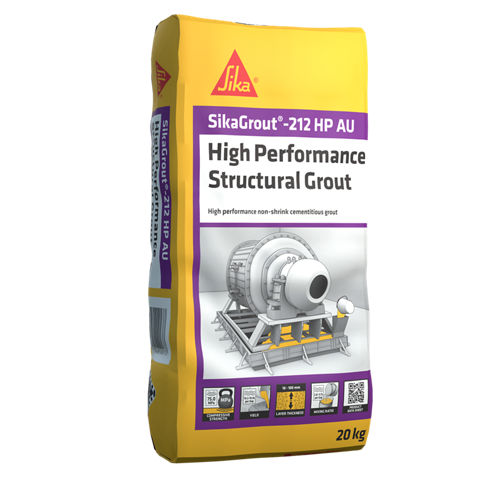

Packaging

20 kg bag

Colour

Grey concrete in appearance

Product Details

Sustainability / Certifications / Approvals

APPROVALS / CERTIFICATES

Complies with the following Standards:

  • classed as a non-shrink grout as per CRD-C 621-81.
  • Lab tested in accordance with AS 1478.2
  • Approved product by TMR Qld "Product index for Bridges" Repair Materials (Concrete)- Grouts Section 5.33 Feb 2019
Product Information

Shelf life

9 months.

Storage conditions

Store SikaGrout-212HP in dry conditions in unopened original packaging.

Maximum grain size

Maximum aggregate size is 1mm for pumping.

Density

~ 2,200 kg/m3 approx. (dependent on water addition rate)
Technical Information

Compressive strength

Age

23oC

30oC

1 Day

~25 MPa

~25 MPa

3 Days

~35 MPa

~40 MPa

7 Days~60 MPa~70 MPa
28 Days~75 MPa~85 MPa

Material and curing conditions at 23 oC / 50% r.h.
Above results based on 50mm x 50mm cube specimens (Flowable consistency)

Tensile strength in flexure

 28 days

12 MPa

Splitting tensile strength

 28 days

6 MPa

Expansion

Height Change %

1 day

0.00%

3 days

0.02%

14 days

0.02%

28 days

0.03%

Electrical resistivity

7 days

~ 8,000 Ω.cm

28 days

~ 11,000 Ω.cm

56 days

~ 13,000 Ω.cm

90 days

~ 14,000 Ω.cm

Application

Application Information

Mixing ratio

Consistency

Water per 20kg bag (litre)

Plastic

2.8

Flowable

3.7

Layer thickness

10mm - 100mm

Flowability

~40 Seconds

(AS 1478.2:2005)

~50 Seconds @30mins

Tested at flowable consistency (Flow Cone)

Material temperature

Application Temperature between 5oC and 35oC

Pot Life

30 minutes approx.

Setting time

Temp

Initial Set

Final Set

Flowable

23oC

~ 5:00 hrs

~ 7:00 hrs
Consumption

Yield

PlasticFlowable

Approx. yield per 20kg bag

10.2 litres

10.8 litres

Approx. bags per 1m3

98

93
Application steps

EQUIPMENT

SikaGrout®-212 HP must be mechanically mixed using a mechanical grout mixer or a suitable drum mixer. The grout mixer will reduce the chances of the mix becoming lumpy or aerated. Smaller quantities should be mixed in clean drum using an electric drill and
spiral drill and spiral mixer at a speed of approximately 500 rpm. DO NOT MIX BY HAND.

MIXING

Place about 70–80 % of the premeasured clean water (depending on consistency required – refer to “Mix Ratio”) into a clean container and gradually add the whole bag of SikaGrout®-212 HP into it while continuously mixing. Add the remaining water until the desired consistency is obtained. Mix for 3–5 minutes with a low speed drill (500 rpm max.). Allow to stand so any entrapped air can escape. Do not add more water to increase flow of the grout if a mix has stiffened due to time delays. If the grout is unworkable discard.

APPLICATION

SikaGrout-212 HP can be placed by gravity flow or by pump. It is essential that proper placing on the job site is practised to ensure placement is completed without problems. Sufficient labour, grout and equipment must be present to ensure continuous placement.

Gravity Flow

Mixed grout should be poured one side of the void to avoid air entrapment. Grout is best poured over short distances to ensure this. Use a suitable header box, maintaining the grout head at all times to ensure continuous flow. To facilitate grout compaction and top plate contact, use rodding, tamping or flexible strapping in short strokes while maintaining an adequate head of grout. Do not vibrate as this will cause segregation. Any adjacent machinery or equipment causing vibration should be shut down until initial set (5 to 6hours).

Pumping

When pumping SikaGrout-212 HP, ensure the pump is suitable for the grout consistency and for the distance and height it is to be pumped. A positive displacement pump is recommended. Place grout by pumping into the farthest corner, filling the space gradually. Ensure that air is not entrapped under the base plate.
