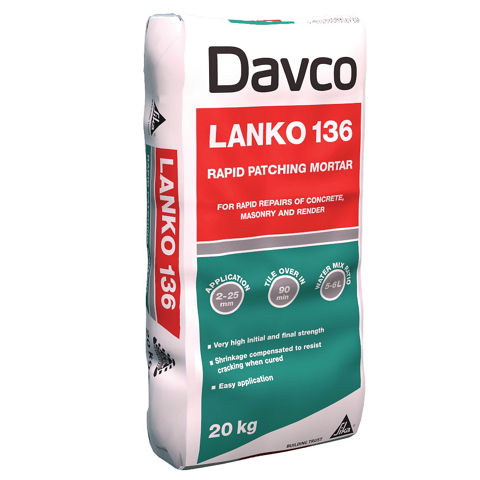

LANKO® 136 Rapid Patching Mortar

Rapid Setting, High Strenght Trafficable Repair Mortar

LANKO® 136 Rapid Patching Mortar is a a 1-part, cementitious, very rapid hardening, early strength gain concrete repair material.

  • Epoxy coatings can be applied as early as 4 hours
  • Freeze / thaw resistant
  • Easy to mix and apply - labor saving
  • High early strength
  • Fast setting
  • Open to foot traffic in 45 minutes
  • Open to vehicle traffic in 1 hour (at 23 °C)
  • Not a vapour barrier
  • Can be placed up to 150mm
Product Data Sheet
Show all documents

Usage

  • On, above and below grade on concrete
  • Highway overlays and repairs
  • Structural repair material for concrete roadways, parking structures, bridges, dams and ramps
  • Full depth patching repairs Economical patching material for horizontal repairs of concrete and mortar


Advantages

  • Epoxy coatings can be applied as early as 4 hours
  • Freeze / thaw resistant
  • Easy to mix and apply - labor saving
  • High early strength
  • Fast setting
  • Open to foot traffic in 45 minutes
  • Open to vehicle traffic in 1 hour (at 23 °C)
  • Not a vapour barrier
  • Can be placed up to 150mm

Packaging

5 kg bag

Colour

Grey powder

Product Details

Product Information

Composition

Cement, selected aggregates and special additives

Shelf life

12 months

Storage conditions

Product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between 5°C - 35°C. Always refer to packaging.

Density

2,200 kg/m3
Technical Information

Compressive strength

Time

Compressive Strength
1 hour

~ 13 MPa

2 hour~ 20 MPa
1 day~ 35 MPa
7 days~ 65 MPa
28 days~ 80 MPa

Material and curing conditions at (23°C / 50% r.h.) Water/powder = 0.105

Tensile adhesion strength

≥ 2.0MPa(EN 1542)

Application

Application Information

Mixing ratio

0.530 L - 0.600 L / 5 kg bag

Layer thickness

MinimumMaximum

Mortar

5 mm150 mm

Ambient air temperature

7°C minimum

Substrate temperature

7°C minimum

Pot Life

Approximately 15 minutes after adding powder to the water

Initial set time

~ 15 - 20 minutes at 23 °C / 50 % r.h.(AS/NZS 2350.4-2006)

Final set time

~ 25 - 30 minutes at 23 °C / 50 % r.h.(AS/NZS 2350.4-2006)
Consumption

Yield

~ 2.5 litres per 5 kg bag
Application steps

MIXING

  • Water mix: Use the minimum amount of water necessary for ease of placement. The recommended water addition is 0.530 - 0.600 L per 5 kg bag.
  • Mixing sequence: Add 70% of the required water into the mixing vessel, then gradually add LANKO® 136 Rapid Patching Mortar while mixing. Slowly incorporate the remaining water until the desired consistency is achieved.
  • Site condition adjustments: Mixing ratios may vary based on site conditions. For optimal performance, ensure both the mixing water and substrate are between 5°C and 30°C. Small trial batches are recommended to determine the best working consistency.
  • Mixing method: Use an electric drill with a paddle mixer or mix by hand. Mix for approximately 3 minutes to achieve the best results.

APPLICATION

Reinforcement Corrosion Protection / Primer Coating

Where a reinforcement coating is required, apply to the whole exposed circumference of the steel the SikaTop-110 EpoCem or Sika Monotop-910N. The repair mortar must be applied into the coating ‘wet’ on ‘dry’.

Concrete Bonding Primer

Prime the prepared substrate with a scrub coat of LANKO® 136 Rapid Patching Mortar by firmly scraping the scrub coat over the substrate surface to form a thin layer and fill any pores or cavities in the surface. Ensure the whole surface to be repaired is covered by the scrub coat. The repair mortar has to be applied into primer ‘wet’ on ‘wet’.

Repair Mortar

The prepared mortar must be scrubbed into the substrate. Be sure to fill all pores and voids. force materials against the edge of the repair, working towards the centre. After filling the repair, screed of excess. Allow concrete to set to desired stiffness, then finish. If a smoother finish is desired, a magnesium float should be used. Mixing, placing and finishing should not exceed 15 minutes maximum. To control setting times, cold water should be used in hot weather and hot water used in cold weather.

CURING TREATMENT

Moist cure should commence immediately after finishing. It is necessary to protect newly applied material from rain. To prevent from freezing, cover with insulating material.

CLEANING OF EQUIPMENT

LANKO® 136 Rapid Patching Mortar should be removed from tools and equipment immediately after use with clean water. Any cured material may be removed by mechanical means.
