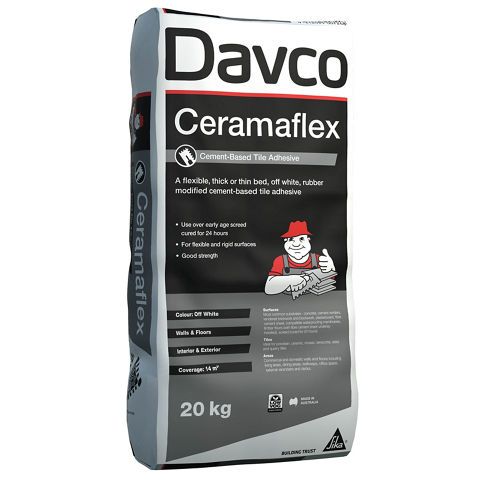

Davco® Ceramaflex

Davco® Ceramaflex

A FLEXIBLE, THIN OR THICK BED, OFF WHITE, RUBBER MODIFIED CEMENT-BASED TILE ADHESIVE

Davco® Ceramaflex is a flexible, thin or thick bed, off white, rubber modified cement-based tile adhesive. Davco® Ceramaflex is designed for wall & floor applications for both internal and external applications.

  • Flexible adhesive
  • Economical
  • Good bond strength
  • Off white colour
  • Suitable for early aged screeds
Product Data Sheet Show all documents

Usage

Davco® Ceramaflex is suitable for thin or thickbed applications both internally and externally. SUITABLE TILE TYPES ARE;
  • Ceramic
  • Porcelain
  • Mosaic
  • Terracotta
  • Slate
  • Quarry Tiles
  SUITABLE SUBSTRATES INCLUDE;
  • Concrete
  • Cement renders
  • Rendered brickwork & blockwork
  • Plasterboard
  • Fibre cement sheet
  • Sika / Davco Approve waterproof membranes
  • Screeds & Mortar beds
  • Early aged screeds (minimum 24 hours @ 22°C & 50% RH)
  • Timber floor (with fibre cement sheet underlay)

Advantages

  • Flexible adhesive
  • Economical
  • Good bond strength
  • Off white colour
  • Suitable for early aged screeds

Packaging

20kg Bags / 64 per pallet

Colour

Off white powder with rubber crumb particles.

Product Details

Sustainability / Certifications / Approvals

ENVIRONMENTAL INFORMATION

Low VOC - 5g/L (SCAQMD method 304-91)

Product Information

Shelf life

12 Months from date of manufacture.

Storage conditions

Store in dry cool conditions above ground out of direct sunlight.

High humidity will reduce shelf life.

Product Declaration

C1S1E

(AS ISO 13007.1)



Application

Application Information

Mixing Ratio

7-8 Litres clean potable water per 20kg bag.

Layer Thickness

Maximum layer shall be no greater than 10mm.

Ambient Air Temperature

Min +5°C to Max 35°C

Substrate Temperature

Min +5°C to Max 35°C

Pot Life

1.5 hours

Open Time

30 minutes

Applied Product Ready for Use

Set time before to grouting

24 hours

Set time before dry area service

24 hours

Set time before wet area service

7 days

All measurements are taken at 22°C and 50% Relative Humidity. Specifications vary according to site conditions and should be taken as a guide only.

Adjustability Time

20 minutes

Consumption

Consumption

A 20kg bags cover approximately 14m2 with a 6mm notch trowel.

Application steps

EQUIPMENT

Select a trowel with a suitable notch size for the tile size and type as per the following;

Tile Size

Trowel notch size

Back Buttering required

Mosaic's

4-6mm

150x150

6mm

200x200

300x300

400x400 and over

*Tiles with lugs or uneven backs

Translucent tiles

8mm

10mm

12mm

*as above dependent on size

*as above

Yes

Yes

Yes

MIXING

  1. Measure the required amount of clean potable water into a bucket (8 Litres per bag).
  2. Slowly add the powder into the water while mixing with a mixing paddle attached to a drill (Max 500 RPM). Do not mix by hand.
  3. Continue to mix for 2-3 minutes until a smooth, limp free creamy mixture is achieved.
  4. Allow the mixture to stand for 5 minutes then restir for an additional minute.

*Adhesive may need restirring during the potlife, do not add more water.

APPLICATION

Laying the Tiles

  1. Place the adhesive onto the prepared and primed substrate. Do not apply more adhesive than can be tiles within the open time of the product, usually from a single tile to 1m2.
  2. Hold the notched trowel at an angle of 60° or greater to the substrate.
  3. Spread the adhesive over the required area where tile is to be applied, comb the adhesive in a single direction (not swirls).
  4. Where "back buttering" the tile is required, use the flat side of the notched trowel to apply a thin adhesive layer to the back of the tile (approx 1-2mm thick).
  5. Place the tile into the combed adhesive and press the tile firmly.
  6. Move the tile forward and then back at 90° across the direction of the combed adhesive to flatten the adhesive to leave no voids under the tile. Occassionally life a tile to check the adhesive covers 90-100% of the tile.
  7. Remove any excess adhesive in the joints, and on the face of the tile with a sponge and water while the adhesive is still wet.
  • Do not allow the adhesive to skin prior to placement of the tiles. If the adhesive skins, remove and replace.
  • Application shall be in accordance with AS3958.1
  • Movement joints shall be installed in accordance with applicable standards.
  • Back buttering the tiles may be required to achieve minimum coverage requirements.
  • Allow the adhesive to dry prior to grouting.

CLEANING OF TOOLS

Clean tools and equipment with water orior to adhesive drying.
