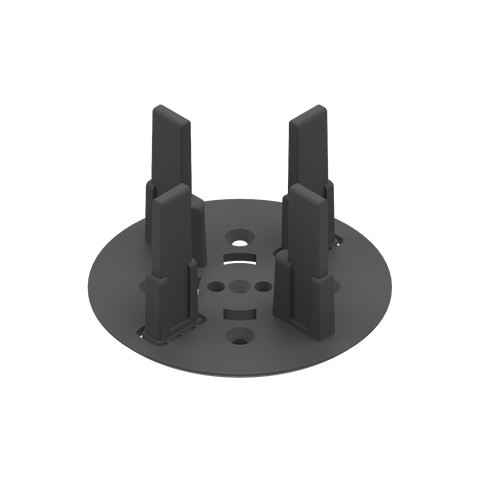

SikaRoof® VersiScape Spacer Tab
SikaRoof® VersiScape Spacer Tab is an attachment used on top of adjustable pedestals to create precise and uniform gaps for the alignment of safety panels in raised landscape finishes. Spacer tabs are manufactured from recycled polypropylene (PP), and it supports four safety panel corners that rest on top of the adjustable pedestal. SikaRoof® VersiScape Spacer Tab is used in conjuntion with SikaRoof® VersiScape™ Panels and may be manufactured in two different thicknesses and heights to support different types of landscape finishes.
- Consistent paver gaps
- Promotes surface drainage
- Eliminates efflorescence
- Recycable components
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Usage
Spacer tabs are used with safety panel for raised flooring for podiums, balconies and roof terraces. The safety panel may be used to raise conventional 600 x 600 mm pavers, pavers of varying sizes, artificial grass, or a combination of the three.Advantages
- Consistent paver gaps
- Promotes surface drainage
- Eliminates efflorescence
- Recycable components
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Packaging

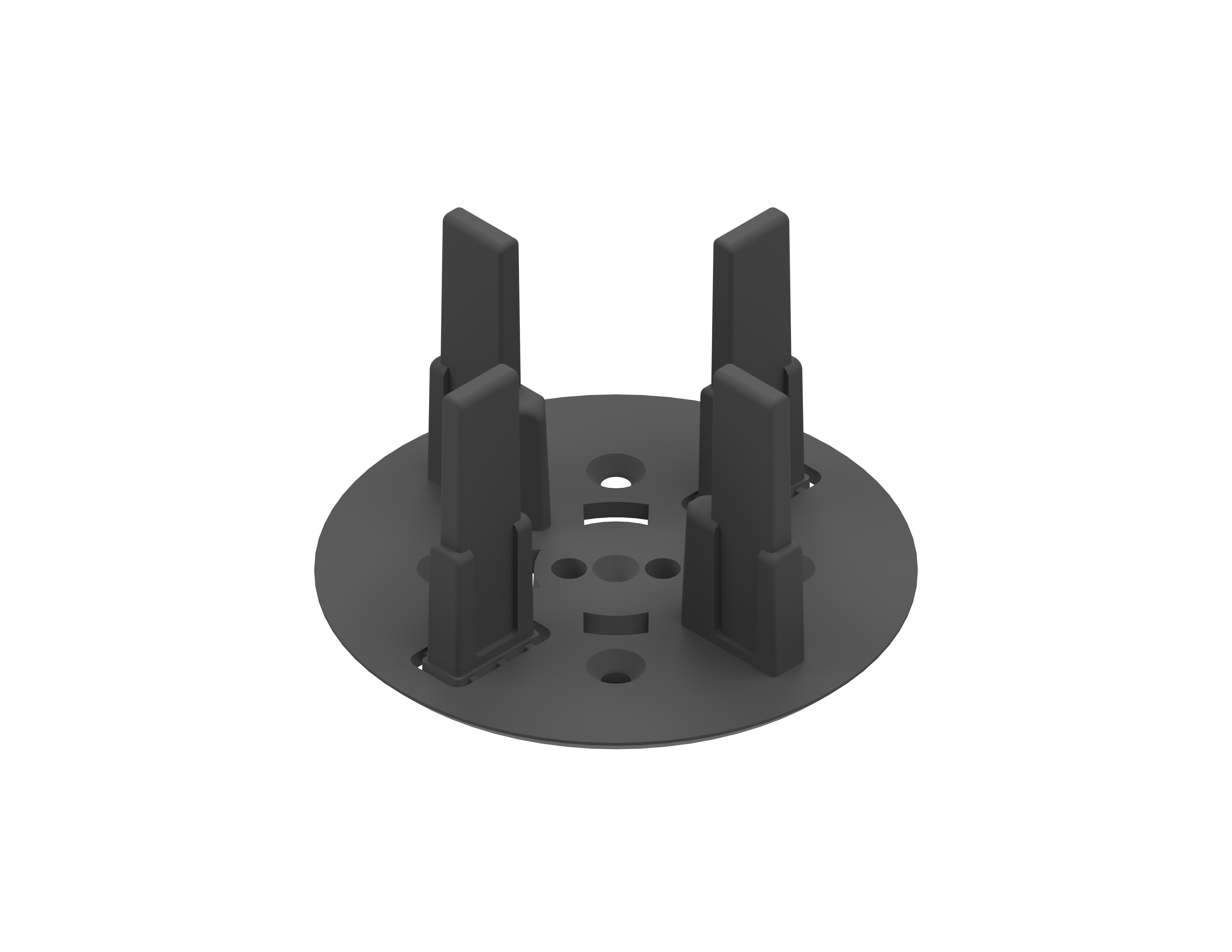

- SikaRoof® VersiScape Spacer Tab 4x45

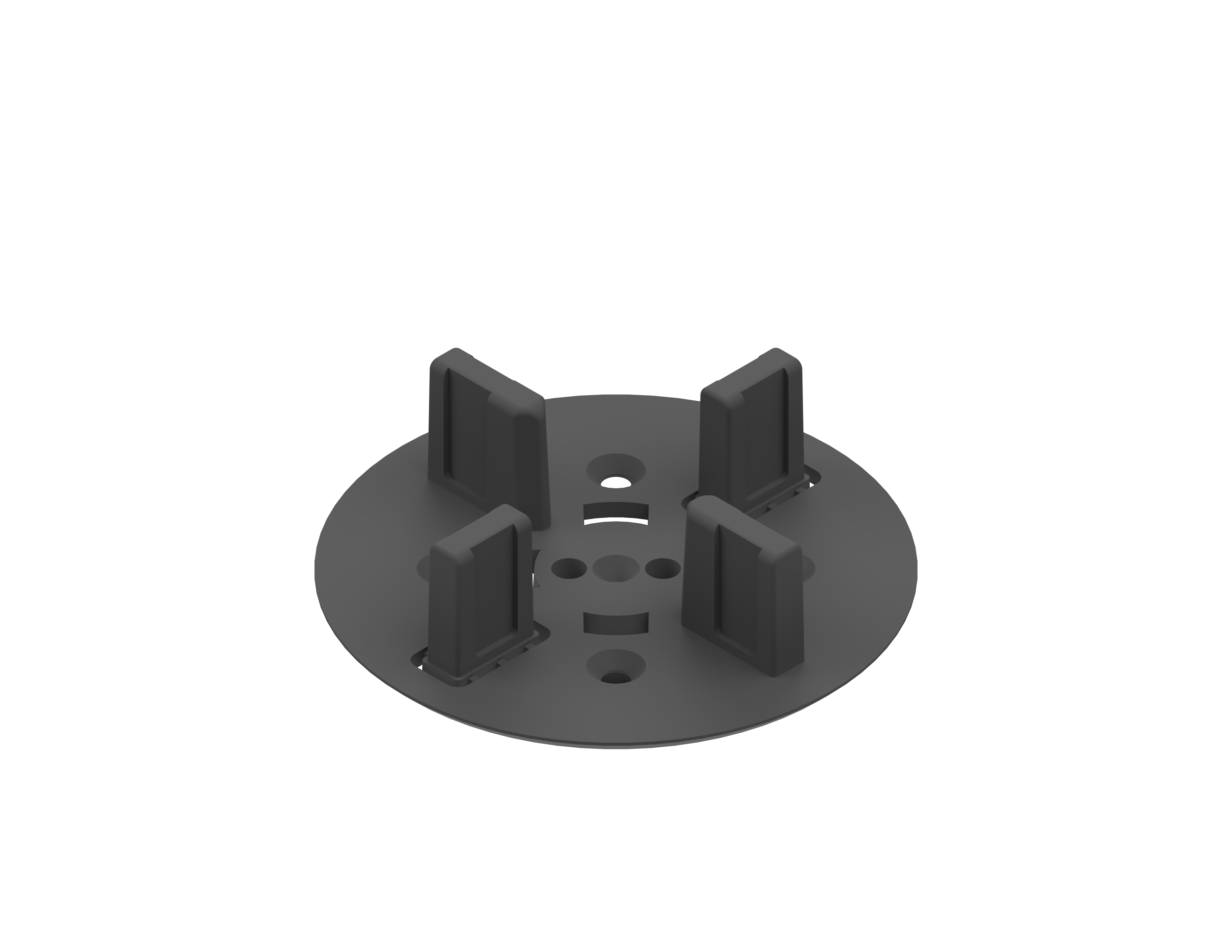

- SikaRoof® VersiScape Spacer Tab 6x20
Refer to pricelist
Colour
Black circular piece with four spacer tabs
Product Details
Shelf life
No expiration date if the product is stored in accordance to the storage conditions as stated in this Product Data Sheet.
Storage conditions
Bags must be stored in their original packing, in their original box, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements.
Thickness
Spacer Tab Thickness
| SikaRoof® VersiScape Spacer Tab 4x45 | SikaRoof® VersiScape Spacer Tab 6x20 |
| 4 mm | 6 mm |
Diameter
82 mm
Height
Spacer Tab Height
| SikaRoof® VersiScape Spacer Tab 4x45 | SikaRoof® VersiScape Spacer Tab 6x20 |
| 45 mm | 20 mm |
Service temperature
- 30 °C to 80 °C
Application
SUBSTRATE PREPARATION
Clean and sound surface shall have at least a wood float finish. All holes, joints, and cracks and honeycombs in concrete or masonry surfaces shall be filled with an approved grout and allowed to cure. High spots in concrete or masonry surfaces shall be cut off or ground down to prevent damage/puncture to the pedestal base.
APPLICATION
SikaRoof® VersiScape Spacer Tab shall be inserted into the top of SikaRoof® VersiJack® pedestal before placing SikaRoof® VersiScape™ Panels abutting to the spacer tab with panel corners sitting on the pedestal.
