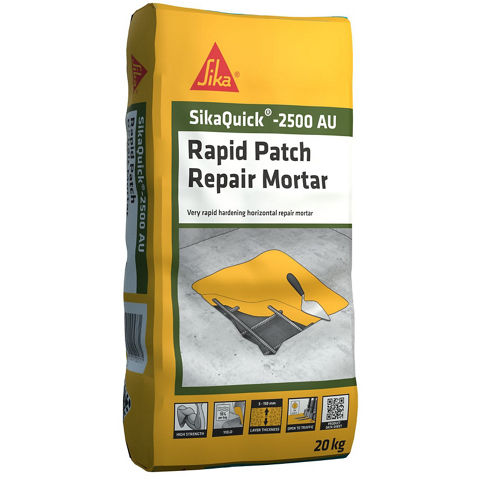

SikaQuick®-2500

SikaQuick®-2500

RAPID HARDENING, HIGH STRENGTH TRAFFICABLE REPAIR MORTAR

SikaQuick®-2500 is a 1- part, cementitious, very rapid hardening, early strength gain concrete repair material.

  • Very rapid hardening as defined by ASTM C-928
  • Epoxy coatings can be applied as early as 4 hours
  • Freeze / thaw resistant
  • Easy to mix and apply -  labor saving
  • High early strength
  • Fast setting
  • Open to foot traffic in 45 minutes
  • Open to vehicle traffic in 1 hour (at 23 °C)
  • Not a vapour barrier
  • Can be placed up to 150mm
Product Data Sheet Show all documents

Usage

  • On, above and below grade on concrete
  • Highway overlays and repairs
  • Structural repair material for concrete roadways, parking structures, bridges, dams and ramps
  • Full depth patching repairs
  • Economical patching material for horizontal repairs of concrete and mortar


Advantages

  • Very rapid hardening as defined by ASTM C-928
  • Epoxy coatings can be applied as early as 4 hours
  • Freeze / thaw resistant
  • Easy to mix and apply -  labor saving
  • High early strength
  • Fast setting
  • Open to foot traffic in 45 minutes
  • Open to vehicle traffic in 1 hour (at 23 °C)
  • Not a vapour barrier
  • Can be placed up to 150mm

Packaging

20 kg bag

Colour

Grey powder



Product Details

Sustainability / Certifications / Approvals

APPROVALS / CERTIFICATES

  • Approved by Qld TMR - Product Index for Bridges and Other Structures, 5.34 Repair Materials (Concrete) – Mortars
  • Meets RTA Rapid Mortar Bar Test RTA T363 <0.1% Non-Reactive
Product Information

Composition

Cement, selected aggregates and special additives

Shelf life

12 months from date of production

Storage conditions

Product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between 4°C - 35°C. Always refer to packaging.
Technical Information

Compressive strength

Time

Compressive Strength

1 hour

~ 13 MPa

2 hour

~ 20 MPa

1 day~ 35 MPa
7 days~ 65 MPa
28 days~ 80 MPa

Material and curing conditions at (23°C / 50% r.h.) Water/powder = 0.105

Tensile strength in flexure

Time

Tensile strength in Flexure

1 day> 5.5 MPa

7 days

> 6.9 MPa
28 days> 7.6 MPa

Material and curing conditions at (23 °C / 50% r.h.) Water/powder = 0.105

Tensile adhesion strength

≥ 2.0MPa

(EN 1542)

Shrinkage

~500 µε after 28 days at 23 °C / 50 % r.h.

(AS 2350.13-2006)

Electrical resistivity

7 days~ 52,000 Ω.cm
28 days~ 114,000 Ω.cm
56 days~ 126,000 Ω.cm
90 days~ 175,000 Ω.cm

Application

Application Information

Mixing ratio

2.1 – 2.4 litres of water per 20 kg bag

Fresh mortar density

2,200 kg/m3

Layer thickness

Minimum

Maximum

Mortar

5 mm

150 mm

For application greater than 150 mm in depth, add 10 mm coarse aggregate. The rate is 10 kg of aggregate per bag of SikaQuick 2500 (au). Aggregate must be clean, well graded and smooth.

Ambient air temperature

7 °C minimum.

Substrate temperature

7 °C minimum

Pot Life

Approximately 15 minutes after adding powder to the water

Initial set time

~ 15 - 20 minutes at 23 °C / 50 % r.h.

(AS/NZS 2350.4-2006)

Final set time

~ 25 - 30 minutes at 23 °C / 50 % r.h.

(AS/NZS 2350.4-2006)
Consumption

Yield

10 litres per 20 kg bag
Application steps

MIXING

Mechanically mix in an appropriately sized mortar mixer. Wet down all tools and mixer to be used.

Start with 2.1 litres of water added to the mixing vessel. Add 1 bag of SikaQuick®-2500 while continuing to mix. Add up to another 0.3 litres of water to achieve desired consistency. Do not over water.

APPLICATION

Reinforcement Corrosion Protection / Primer Coating

Where a reinforcement coating is required, apply to the whole exposed circumference of the steel the SikaTop 110 EpoCem or Sika Monotop 910N. The repair mortar must be applied into the coating ‘wet’ on ‘dry’.

Concrete Bonding Primer

Prime the prepared substrate with a scrub coat of SikaQuick®-2500 by firmly scraping the scrub coat over the substrate surface to form a thin layer and fill any pores or cavities in the surface. Ensure the whole surface to be repaired is covered by the scrub coat. The repair mortar has to be applied into primer ‘wet’ on ‘wet’.



Repair Mortar

The prepared mortar must be scrubbed into the substrate. Be sure to fill all pores and voids. force materials against the edge of the repair, working towards the centre. After filling the repair, screed of excess. Allow concrete to set to desired stiffness, then finish. If a smoother finish is desired, a magnesium float should be used. Mixing, placing and finishing should not exceed 15 minutes maximum.

To control setting times, cold water should be used in hot weather and hot water used in cold weather.

CURING TREATMENT

Moist cure should commence immediately after finishing. It is necessary to protect newly applied material from rain. To prevent from freezing, cover with insulating material.

CLEANING OF EQUIPMENT

Clean all tools and application equipment with water immediately after use. Hardened material can only be mechanically removed.
