SCHÖNOX® AB

SCHÖNOX® AB

A FLEXIBLE UNDER TILE SHEET WATERPROOFING MEMBRANE WITH DECOUPLING / CRACK ISOLATION PROPERTIES

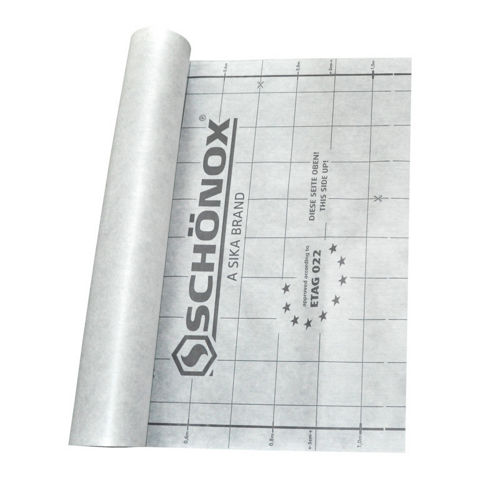

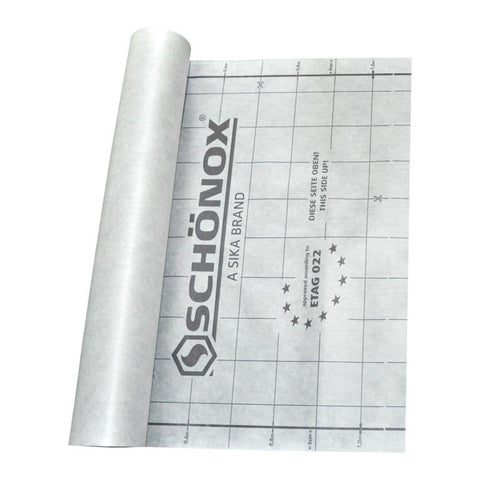

A flexible, class III, crack-bridging, isolating and waterproofing sheet membrane. Made from highly tear resistant Polyethylene, double sided fleece lamination for rapid installation of waterproofing and tiling. SCHÖNOX® AB can be used in normal and high loaded commercial wet areas, steam rooms and swimming pools. SCHÖNOX® AB is suitable for heated floors and has excellent crack bridging properties.

  • Approved ETAG 022
  • EMICODE EC1plus: Very low emission
  • High breaking strength
  • Crack bridging up to 6mm for non-structural / non dynamic cracks
  • Flexible Class III performance
  • Fast, easy 1 step application
  • Tiling may commence after 1 hour (on porous substrates)
  • Rotproof
  • Water vapour retarding
  • Water tight
  • De-coupling Mat
  • Excellent adhesive with Sika branded tile adhesives
Product Data Sheet Show all documents

Usage

  • in highly loaded commercial wet areas and kitchens.
  • on balconies, & terraces prior to tiling.
  • in swimming pools, commercial aquatic centre pools, spas and sauna's. (10m depth maximum)
  • Wet area applications
  • interior and exterior applications
 Schonox AB is suitable on the following substrates;
  • Concrete
  • Masonry blockwork (fully grouted)
  • Existing tiles such as ceramic tiles, porcelain tiles (priming or mechanical preparation required)
  • Cement Render, mortar beds & Screeds
  • Pre-cast concrete (with mechanical preparation prior to application)
  • Fibre Cement Boards
  • Compressed Cement Fibre Boards
  • Gypsum Plaster Boards
  • Aerated concrete
  • Light weight Polystyrene boards coated with mortar
  • Cement Terazzo (with mechanical preparation)
  • Structural Plywood & Particle Board (non marine grade)
  • Heated floors (water and electric systems)


Advantages

  • Approved ETAG 022
  • EMICODE EC1plus: Very low emission
  • High breaking strength
  • Crack bridging up to 6mm for non-structural / non dynamic cracks
  • Flexible Class III performance
  • Fast, easy 1 step application
  • Tiling may commence after 1 hour (on porous substrates)
  • Rotproof
  • Water vapour retarding
  • Water tight
  • De-coupling Mat
  • Excellent adhesive with Sika branded tile adhesives

Packaging

30 Metre Roll

Colour

Grey or Yellow

Product Details

Sustainability / Certifications / Approvals

APPROVALS / CERTIFICATES

AS 4858:2004, Wet Area Membrane

AS 4654.1, 2012, Waterproofing Membrane Systems for Exterior Use


Product Information

Composition

Polyethylene sheet encased with a special fleece.

Shelf life

2 Years +

Storage conditions

Store Schonox AB in a dry cool area and horizontal.

Length

30 Meter Roll

Width

1 meter wide

Thickness

0.6mm in thickness

Mass per area

approx 280g/m²
Technical Information

Tensile strength

5.17Mpa

Elongation

Class III, (high elasticity).

Crack bridging ability

5mm (non-structural cracks)

Adhesion in peel

Substrate

Average Peel Strength (N)

Concrete

38

Plywood

Plaster

37

36

Burst strength

≥ 3.0 bar

Linear dimensional change

Pass

Service temperature

-30°C to +90°C

Chemical resistance

Hydrochloric acid 3%

Sulfuric acid 35%

Lactic acid 5%

Potassium hydroxide 3%/20%

Sodium Hypochlorite 0.3g/Ltr

Citric acid 10%

Sea Water 20g/l sea salt

Resistance to UV exposure

500 hours

Application

Application Information

Ambient air temperature

Not below 5°C

Not above 35°C

Substrate temperature

Not below 5°C

Not above 35°C
Application steps

APPLICATION INSTRUCTIONS

All Substrates shall be installed as per manufacturers instructions, fit for purpose and designed to handle the loads of a Tile or Stone system.

• Substrate Deflection: All Substrates under loads must not exceed L/360 for tile and L/720 for Stone.

• Substrates must be properly cured, structurally sound, free from loose or friable particles, clean, dry and free from contaminates such as dust, dirt, oil, grease, curing compounds, crystalline sealers, laitance, or efflorescence.

• Dependant on the substrate condition and contamination to be removed from the surface, perform adequate scarification, or blast cleaning in order to remove all traces of any materials that could reduce the product adhesion to the substrate.

• Refer to Schonox iFix Adhesive PDS for further details.

EQUIPMENT

Slow Speed mixing drill (Max 500RPM)

Schonox iFix Tool Kit

SUBSTRATE QUALITY

Concrete Floors and cement based screeds:

Concrete and cement based shall where possible should be adequately cured.

Substrates shall have a maximum moisture content of 3% or 75% Relative humidity.

For heated substrates maximum moisture content shall be 2% or 75% Ralative humidity.

For substrate with moisture contents outside these recomendation please contect Sika technical advice.

Sheeted substrates: All boards / Underlays must be installed as per manufacturer's instructions and specifically designed for tiling.

Structural Plywood and Particle Board: Boards shall be clean and dry and rigid enough to accommodate the incumbent tiling system. Waxes, or coating must be removed be prior to application.

Priming: On porous substrate priming is considered optional.

On highly porous cement boards, priming may be undertaken with SikaTile 010 Secure Prime, Eco Prime WB or Davco Ultraprime to increase open time of the Schonox IFix adhesive.
