Sika® CarboDur® BC

Sika® CarboDur® BC

PULTRUDED CARBON FIBRE RODS FOR STRUCTURAL STRENGTHENING AS PART OF THE SIKA® CARBODUR® SYSTEM

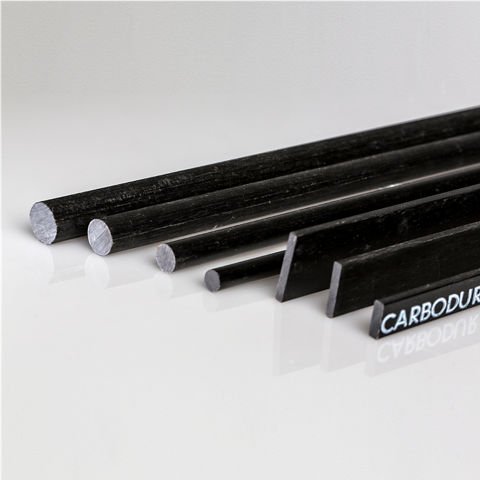

Sika® CarboDur® BC rods are pultruded carbon fibre reinforced polymer (CFRP) laminates with a circular cross section, designed for strengthening concrete, timber and masonry.
Sika® CarboDur® BC rods are bonded into slots as near surface mounted reinforcement using Sika AnchorFix®-3001, Sika AnchorFix®-3030, Sikadur®-330 or Sikadur®-30 epoxy resin based adhesives for normal application temperatures, or Sikadur®-30 LP* epoxy resin based adhesive for elevated temperatures during application. Sikadur®-300 epoxy resin based adhesive is used for horizontal applications.
Sika® CarboDur® BC rods can also be used for anchoring SikaWrap® fabrics where positive attachment to concrete or masonry is required.

  • Non-corroding
  • Very high strength
  • Invisible once installed, no joints required
  • Excellent durability and fatigue resistance
  • Easy transportation
  • Lightweight, very easy to install
  • Smooth edges without exposed fibres as the result of production by pultrusion
  • Can accept traffic on the strengthened surface (rods not exposed)
  • No surface preparation / levelling of uneven substrates required
  • Improved resistance to fire (compared with externally bonded reinforcement)
  • Testing and Approvals available from many countries worldwide
Product Data Sheet Show all documents

Usage

Sika® CarboDur® BC rods are used to improve, increase or repair the performance and resistance of structures for: Increased Load Carrying Capacity:
  • Increasing the load capacity of floor slabs, beams and bridge sections
  • For the installation of heavier machinery
  • To stabilise vibrating structures
  • For changes in building use
Damage to structural elements due to:
  • Deterioration of the original construction materials
  • Steel reinforcement corrosion
  • Accidents (Vehicle impact, earthquakes, fire)
Improvement of serviceability and durability:
  • Reduced deflection and crack width
  • Stress reduction in the steel reinforcement
  • Improved fatigue resistance
  Change of the structural system:
  • Removal of walls and / or columns
  • Removal of floor and wall sections to create access / openings
Resistance to possible events:
  • Increased resistance to earthquakes, impact or explosion etc.
To repair design or construction defects such as:
  • Insufficient / inadequate reinforcement
  • Insufficient / inadequate structural depth
Combination with other strengthening products:
  • Doweling applications
  • Anchoring of SikaWrap® fabrics

Advantages

  • Non-corroding
  • Very high strength
  • Invisible once installed, no joints required
  • Excellent durability and fatigue resistance
  • Easy transportation
  • Lightweight, very easy to install
  • Smooth edges without exposed fibres as the result of production by pultrusion
  • Can accept traffic on the strengthened surface (rods not exposed)
  • No surface preparation / levelling of uneven substrates required
  • Improved resistance to fire (compared with externally bonded reinforcement)
  • Testing and Approvals available from many countries worldwide

Packaging

Supplied in 6 and 12 m long bars (BC 8, BC 10, BC 12, BC 16) custom lengths can be made to order. BC12 in stock and available locally. Please call your local Sika office for lead times.

Colour

Carbon fibre reinforced polymer with an epoxy matrix, black.

Product Details

Sustainability / Certifications / Approvals

CERTIFICATES AND TEST REPORTS

  • Poland: Technical Approval IBDiM Nr AT/2008-03-0336/1 „Płaskowniki. pręty, kształtki i maty kompozytowe do wzmacniania betonu o nazwie handlowej: Zestaw materiałów Sika® CarboDur® do wzmacniania konstrukcji obiektów mostowych
  • Fib, Technical Report, bulletin 14: Externally bonded FRP reinforcement for RC structures, July 2001
  • Italy: CNR-DT 200/2004 - Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Existing Structures
Product Information

Fibre volume content

> 65 %

Shelf life

Unlimited, provided the storage conditions are met.

Storage conditions

Store in original, unopened, sealed and undamaged packaging in dry conditions at temperatures of max. +50 °C. Protect from direct sunlight.

Transportation: only in the original packaging, or otherwise adequately protected against any mechanical damage

Dimensions

Type

Diameter

Cross sectional area

Sika® CarboDur® BC6

6 mm

28 mm2

Sika® CarboDur® BC8

8 mm

50 mm2

Sika® CarboDur® BC10

10 mm

79 mm2

Sika® CarboDur® BC1212 mm113 mm2
Sika® CarboDur® BC16
16 mm
201 mm2
System information

System structure

The system build-up and configuration as described must be fully complied with and may not be changed.
Resin Adhesive – Sika AnchorFix®-3001, Sika AnchorFix®-3030, Sikadur®-330*, Sikadur®-30, Sikadur®-30 LP*. Sikadur®-30 LP* is not available in Australia lead time may apply.
Structural strengthening Carbon plates – Sika® CarboDur® BC
For detailed information on the different resins, together with the application details, please refer to the latest Product Data Sheets and the “Method Statement Sika® CarboDur® Near Surface Mounted Reinforcement” Ref: 850 41 07
Technical Information

Laminate tensile strength

Mean value

3,100 N/mm2

5% Fractile value

2,900 N/mm2

Values in the longitudinal direction of the fibres

Laminate modulus of elasticity in tension

Mean value

148,000 N/mm2

Values in the longitudinal direction of the fibres

Laminate elongation at break in tension

Minimum value

> 1.70 %

Values in the longitudinal direction of the fibres

Glass transition temperature

> 100 °C

(EN 61006)

Application

Consumption

Consumption

Sika® CarboDur® BC6

≤ 0.12 kg/m
Sika® CarboDur® BC8≤ 0.18 kg/m

Sika® CarboDur® BC10

≤ 0.24 kg/m

Sika® CarboDur® BC12

≤ 0.32 kg/m
Sika® CarboDur® BC16≤ 0.36 kg/m



Application steps

SUBSTRATE PREPARATION

Please refer to the “Method Statement Sika® CarboDur® Near Surface Mounted Reinforcement” Ref: 850 41 07
