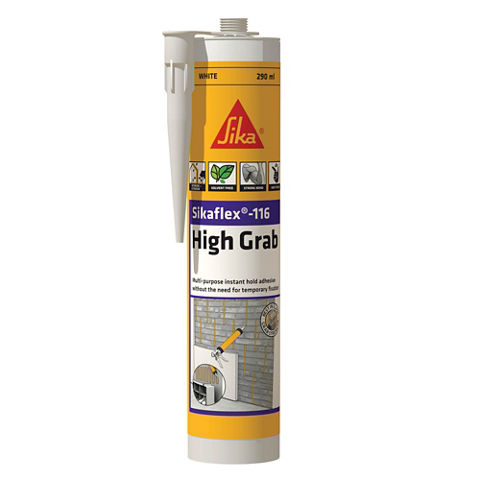

Sikaflex®-116 High Grab
High Grab Construction Adhesive
Sikaflex®-116 High Grab is a construction adhesive with high initial grab which bonds most construction material substrates.
- High initial grab
- Fixing of heavy items without temporary fixation
- Good workability
- Very low emissions
- Adhesive-sealant with CE marking
Usage
An adhesive to bond construction components and materials such as:- Concrete
- Masonry
- Most stones
- Ceramic
- Wood
- Metals
- Glass
- Mirrors*
Advantages
- High initial grab
- Fixing of heavy items without temporary fixation
- Good workability
- Very low emissions
- Adhesive-sealant with CE marking
Packaging
290 ml cartridge: 12 cartridges per box
Colour
White
Product Details
SUSTAINABILITY
- Conformity with LEED v4 EQc 2: Low-Emitting Materials
- VOC emission classification GEV-Emicode EC1PLUS, license number 11489/20.10.00
- VOC emission classification of building materials RTS M1
- Class A+ according to French Regulation on VOC emissions
APPROVALS / CERTIFICATES
- CE Marking and Declaration of Performance to EN 15651-1 - Sealants for non-structural use in joints in buildings - Facade elements: Class F EXT-INT CC 20HM
Composition
Silane terminated polymer
Shelf life
12 months from the date of production
Storage conditions
The product must be stored in original, unopened and undamaged packaging in dry conditions at temperatures between +5 °C and +25 °C. Always refer to packaging.
Density
| ~1.40 kg/l | (ISO 1183-1) |
Shore A hardness
| ~45 (after 28 days) | (ISO 868) |
Tensile strength
| ~2.2 N/mm2 | (ISO 37) |
Tear propagation resistance
| ~7.0 N/mm | (ISO 34) |
Service temperature
−40 °C min. / +80 °C max.
Application
Sag flow
| 0 mm (20 mm profile, 23 °C) | (ISO 7390) |
Ambient air temperature
+5 °C min. / +40 °C max.
Substrate temperature
+5 °C min. / +40 °C max. Minimum +3 °C above dew point temperature
Curing rate
| ~3 mm/24 hours (+23 °C / 50 % r.h.) | (CQP* 049-2) *Sika Corporate Quality Procedure |
Skinning time
| ~20 min (+23 °C / 50 % r.h.) | (CQP 019-1) |
Yield
| Yield 1 Cartridge (290 ml) | Dimension |
| ~100 spots | Diameter = 30 mm Thickness = 4 mm |
| ~5 m bead * | Nozzle diameter = 5 mm (~60 ml per linear meter) |
* Note: For heavy items more or thicker beads (up to ~120 ml per linear metre) maybe required.
These figures are theoretical and do not allow for any additional material due to surface porosity, surface profile, variations in level or wastage etc.
SUBSTRATE PREPARATION
The substrate must be sound, clean, dry and free of all contaminants such as dirt, oil, grease, cement laitance, old sealants and poorly bonded paint coatings which could affect adhesion of the adhesive.
For optimum adhesion and critical, high performance applications the following priming and/or pre-treatment procedures must be followed:
Non-porous substrates
Aluminium, anodised aluminium, stainless steel, galvanised steel, powder coated metals or glazed tiles, slightly roughen surface with a fine abrasive pad. Clean and pre-treat using Sika® Aktivator-205 applied with a clean cloth.
Before bonding / sealing, allow a waiting time of > 15 minutes (< 6 hours).
Other metals, such as copper, brass and titanium-zinc, clean and pre-treat using Sika® Aktivator-205 applied with a clean cloth. After a waiting time of > 15 minutes (< 6 hours). Apply Sika® Primer-3 N applied by brush. Allow a further waiting time of > 30 minutes (< 8 hours) before bonding / sealing.
PVC has to be cleaned and pre-treated using Sika® Primer-215 applied with a brush. Allow a waiting time of > 15 minutes (< 8 hours) before bonding / sealing.
Porous substrates
Concrete, aerated concrete and cement based renders, mortars and bricks, prime surface using Sika® Primer-3 N applied by brush.
Before bonding / sealing, allow a waiting time of > 30 minutes (< 8 hours).
For more detailed advice and instructions contact Sika Technical Services.
Note: Primers are adhesion promoters and not an alternative to improve poor preparation / cleaning of joint surfaces. Primers also improve the long term adhesion performance of a sealed joint.
CLEANING OF EQUIPMENT
Clean all tools and application equipment immediately after use with Sika® Remover-208. Once cured, hardened material can only be removed mechanically.
For cleaning skin use Sika® Cleaning Wipes.
