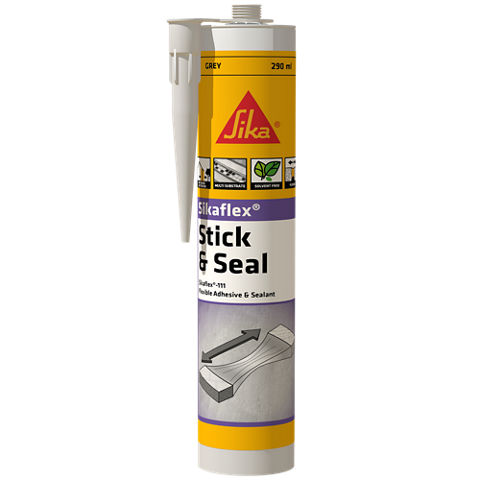

Sikaflex®-111 Stick & Seal
Flexible adhesive and sealant
Sikaflex®-111 Stick & Seal is a 1-part, multipurpose adhesive and sealant with a very broad adhesion and sealing profile which bonds and seals most construction material substrates. Internal and external use.
- Bonds well to a wide variety of substrates without surface pre-treatment
- Bonds to damp concrete
- Compatible with most substrates, EPS/XPS and building wraps
- Compatible with most bitumen grades
- Good mechanical resistance and weathering resistance
- Adhesive-sealant with CE marking
Usage
An adhesive to bond most construction components and materials such as:- Concrete
- Masonry
- Ceramic
- Wood
- Metal
- Glass
- Plastics such as PVC, PA, PET and EPS/XPS
Advantages
- Bonds well to a wide variety of substrates without surface pre-treatment
- Bonds to damp concrete
- Compatible with most substrates, EPS/XPS and building wraps
- Compatible with most bitumen grades
- Good mechanical resistance and weathering resistance
- Adhesive-sealant with CE marking
Packaging
290 ml cartridge, 12 cartridges per box
Colour
White, Concrete Grey, Black
Product Details
SUSTAINABILITY
-
Conformity with LEED v4 EQc 2: Low-Emitting Materials
-
VOC emission classification GEV-EMICODE EC 1PLUS
- VOC emission classification of building materials RTS M1
- Class A+ according to French Regulation on VOC emissions
CERTIFICATES AND TEST REPORTS
- CE Marking and Declaration of Performance to EN 15651-1 - Sealants for non-structural use in joints in buildings - Facade elements: Class F EXT-INT CC 20HM
Composition
Silane terminated polymer
Shelf life
12 months from the date of production
Storage conditions
The product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C and +25 °C. Always refer to packaging.
Density
| ~1.40 kg/l | (ISO 1183-1) |
Shore A hardness
| ~36 (after 28 d) | (ISO 868) |
Tensile strength
| ~1.5 N/mm2 | (ISO 37) |
Secant tensile modulus
| ~0.65 N/mm2 at 60 % elongation (23 °C) | (ISO 8339) |
Elastic recovery
| ~75 % | (ISO 7389) |
Tear propagation resistance
| ~4.5 N/mm | (ISO 34) |
Service temperature
−50 °C min. / +80 °C max.
Joint design
The joint width must be designed to suit the movement capability of the sealant. The joint width shall be ≥ 6 mm and ≤ 20 mm. A width to depth ratio of 2:1 must be maintained.
Joints ≤ 10 mm in width are for crack control and therefore non-movement joints.
For larger joints contact Sika Technical Services for additional information.
Application
Sag flow
| 0 mm (20 mm profile, 23 °C) | (ISO 7390) |
Ambient air temperature
+5 °C min. / +40 °C max.
Substrate temperature
+5 °C min. / +40 °C max., min. 3 °C above dew point temperature
Backing material
Use closed cell, polyethylene foam backing rods
Curing rate
| ~3 mm/24 h (23 °C / 50 % r.h.) | Sika Corporate Quality Procedure (CQP 049-2) |
Skinning time
| ~35 min (23 °C / 50 % r.h.) | (CQP 019-1) |
Yield
| Bonding | |
| Yield 1 Cartridge (290 ml) | Dimension |
| ~100 spots | Diameter = 30 mm Thickness = 4 mm |
| ~15 m bead | Nozzle diameter = 5 mm (~20 ml per linear meter) |
| Sealing | ||
| Joint width mm | Joint depth mm | Joint length m per Cartridge (290 ml) |
| 10 | 10 | 2.9 |
| 15 | 12 | 1.6 |
| 20 | 17 | 0.9 |
| 25 | 20 | 0.6 |
| 30 | 25 | 0.4 |
APPLICATION INSTRUCTIONS
SUBSTRATE PREPARATION
The substrate must be sound, clean, dry and free of all contaminants such as dirt, oil, grease, cement laitance, old sealants and poorly bonded paint coatings which could affect adhesion of the adhesive / sealant. The substrate should be of sufficient strength to resist with the stresses induced by the sealant during movement.
Removal techniques such as wire brushing, grinding, sanding or other suitable mechanical tools can be used.
All dust, loose and friable material must be completely removed from all surfaces before application of any activators, primers or adhesive / sealant.
Sikaflex®-111 Stick & Seal adheres without primers and/or activators. However, for optimum adhesion, joint durability and critical, high performance applications the following priming and/or pre-treatment procedures shall be followed:
Non-porous substrates
Aluminium, anodised aluminium, stainless steel, galvanised steel, powder coated metals, glazed tiles or PVC: slightly roughen surface with a fine abrasive pad. Clean and pre-treat using Sika® Aktivator-205 applied with a clean cloth. Before bonding / sealing, allow a waiting time of > 15 minutes (< 6 hours).
Other metals, such as copper, brass and titanium-zinc: clean and pre-treat using Sika® Cleaner P or Sika® Aktivator-205 applied with a clean cloth. After a waiting time of > 15 minutes (< 6 hours). Apply Sika® Primer-3 N applied by brush. Allow a further waiting time of > 30 minutes (< 8 hours) before bonding / sealing.
Porous substrates
Concrete, aerated concrete and cement-based renders, mortars and bricks: prime surface using Sika® Primer-3 N applied by brush. Before bonding / sealing, allow a waiting time of > 30 minutes (< 8 hours).
For more detailed advice and instructions contact Sika Technical Services.
Note: Primers are adhesion promoters and not an alternative to improve poor preparation / cleaning of joint surfaces. Primers also improve the long-term adhesion performance of the sealed joint.
CLEANING OF EQUIPMENT
Clean all tools and application equipment immediately after use with Sika® Remover-208. Once cured, hardened material can only be removed mechanically.
For cleaning skin use Sika® Cleaning Wipes.
