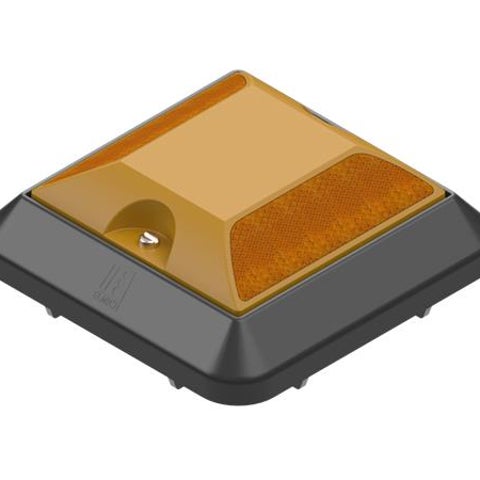

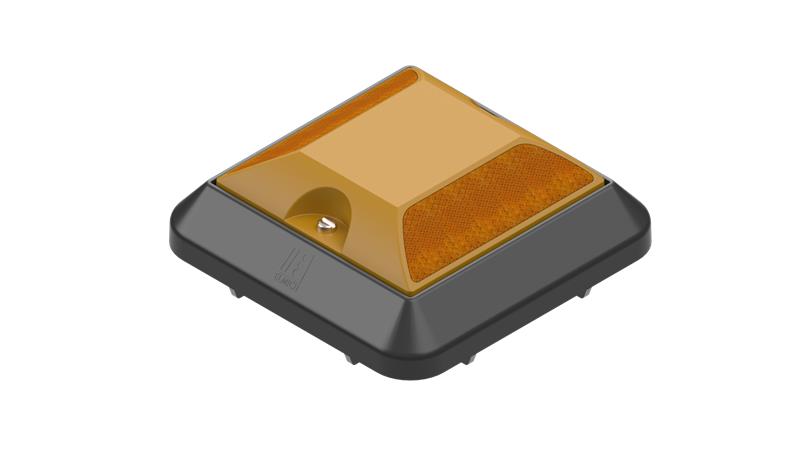

SikaRoof® TurfPave® Reflector
SikaRoof® TurfPave® Reflector is a reflective road marker designed to demarcate emergency vehicle accessways on permeable and green pathways. Reflective road marker housing units are manufactured from polypropylene (PP) and raise reflective road markers to increase visibility. SikaRoof® TurfPave® Reflector modules are push-fitted into any cell on SikaRoof® TurfPave® XD.
- Uses the standard 100 mm x 100 mm reflective roadway markers
- Tamper-resistant
- Raised for increased visibility
- Tapered to reduce trip hazard
- Recyclable components
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Usage
Reflective road markers are used as traffic guides for emergency vehicles and restrict encroachment into designated emergency zones.Advantages
- Uses the standard 100 mm x 100 mm reflective roadway markers
- Tamper-resistant
- Raised for increased visibility
- Tapered to reduce trip hazard
- Recyclable components
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Packaging
- SikaRoof® TurfPave® Reflector
Refer to pricelist
Colour
Black square module with reflective road marker
Product Details
CERTIFICATES AND TEST REPORTS
Singapore Green Building Product (Leader) Cert. No. SGBP 3255
Shelf life
No expiration date if the product is stored in accordance to the storage conditions as stated in this Product Data Sheet
Storage conditions
Product must be stored in their original packing, laid in a horizontal position, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements
Dimensions
133 x 133 x 68 mm
Service temperature
- 30 °C to 80 °C
Application
APPLICATION
SikaRoof® TurfPave® Reflector shall be fitted with a 100 x 100 mm reflective road marker secured by two screws and nuts. The module would then be push-fitted into pre-determined cells of SikaRoof® TurfPave® XD to create the desired design according to specifications.
