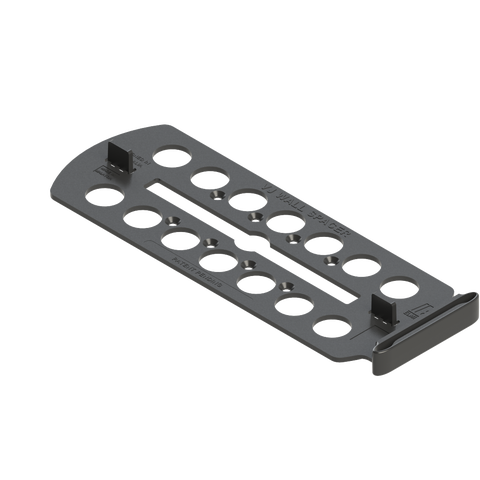

SikaRoof® VersiJack® Wall Spacer

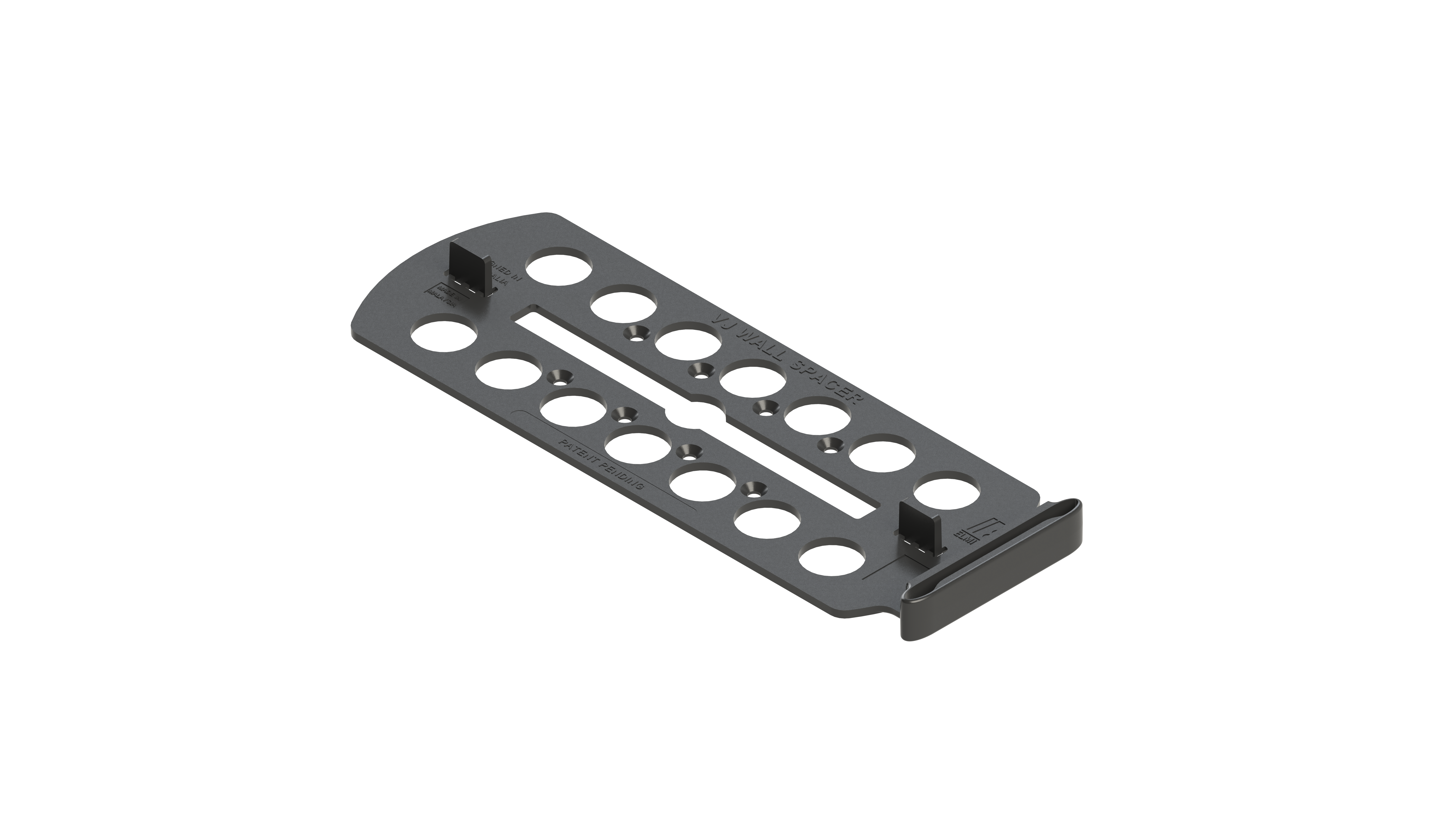

SikaRoof® VersiJack® Wall Spacer is an accessory to create a gap between raised pavers and the surrounding parapet wall. Wall spacers are manufactured from recycled polypropylene (PP), and it has a compressible buffer to accommodate the expansion and contraction of materials under thermal influence. SikaRoof® VersiJack® Wall Spacer is used in conjunction with SikaRoof® VersiJack® and is installed between the top of pedestals and beneath the pavers.
- Wall buffer for pedestal system
- Recyclable components
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Usage
Wall spacer for raised paving installations on podiums, balconies, roof terraces and areas with hardscape finishes.Advantages
- Wall buffer for pedestal system
- Recyclable components
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Packaging
SikaRoof® VersiJack® Wall Spacer
| 3x12 G10 | 2x12 G15 | 3x12 G15 | 4x12 G15 | 2x8 G20 |
Refer to pricelist
Colour
Black flat rectangular wall spacer
Product Details
CERTIFICATES AND TEST REPORTS
Singapore Green Building Product (Leader) Cert. No. SGBP 3254
Shelf life
No expiration date if the product is stored in accordance to the storage conditions as stated in this Product Data Sheet.
Storage conditions
Product must be stored in their original packing, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements.
Dimensions
250 x 85 mm
Thickness
Spacer Tab Thickness
| 3 x 12 G10 | 2 x 12 G15 | 3 x 12 G15 | 4 x 12 G15 | 2 x 8 G20 |
| 3 mm | 2 mm | 3 mm | 4 mm | 2 mm |
Wall Spacer Gap
| 3 x 12 G10 | 2 x 12 G15 | 3 x 12 G15 | 4 x 12 G15 | 2 x 8 G20 |
| 10 mm | 15 mm | 15 mm | 15 mm | 20 mm |
Height
Spacer Tab Height
| 3 x 12 G10 | 2 x 12 G15 | 3 x 12 G15 | 4 x 12 G15 | 2 x 8 G20 |
| 12 mm | 12 mm | 12 mm | 12 mm | 8 mm |
Service temperature
- 30 °C to 80 °C
Application
SUBSTRATE PREPARATION
Clean and sound surface shall have at least a wood float finish. All holes, joints, and cracks and honeycombs in concrete or masonry surfaces shall be filled with an approved grout and allowed to cure. High spots in concrete or masonry surfaces shall be cut off or ground down to prevent damage/puncture to the pedestal base.
APPLICATION
SikaRoof® VersiJack® Wall Spacer shall be installed with SikaRoof® VersiJack®. SikaRoof® VersiJack® Wall Spacer shall be placed on top of SikaRoof® VersiJack® before placing stone, concrete or porcelain pavers abut to the wall spacer for all pavers along the perimeter of the raised flooring installation.
