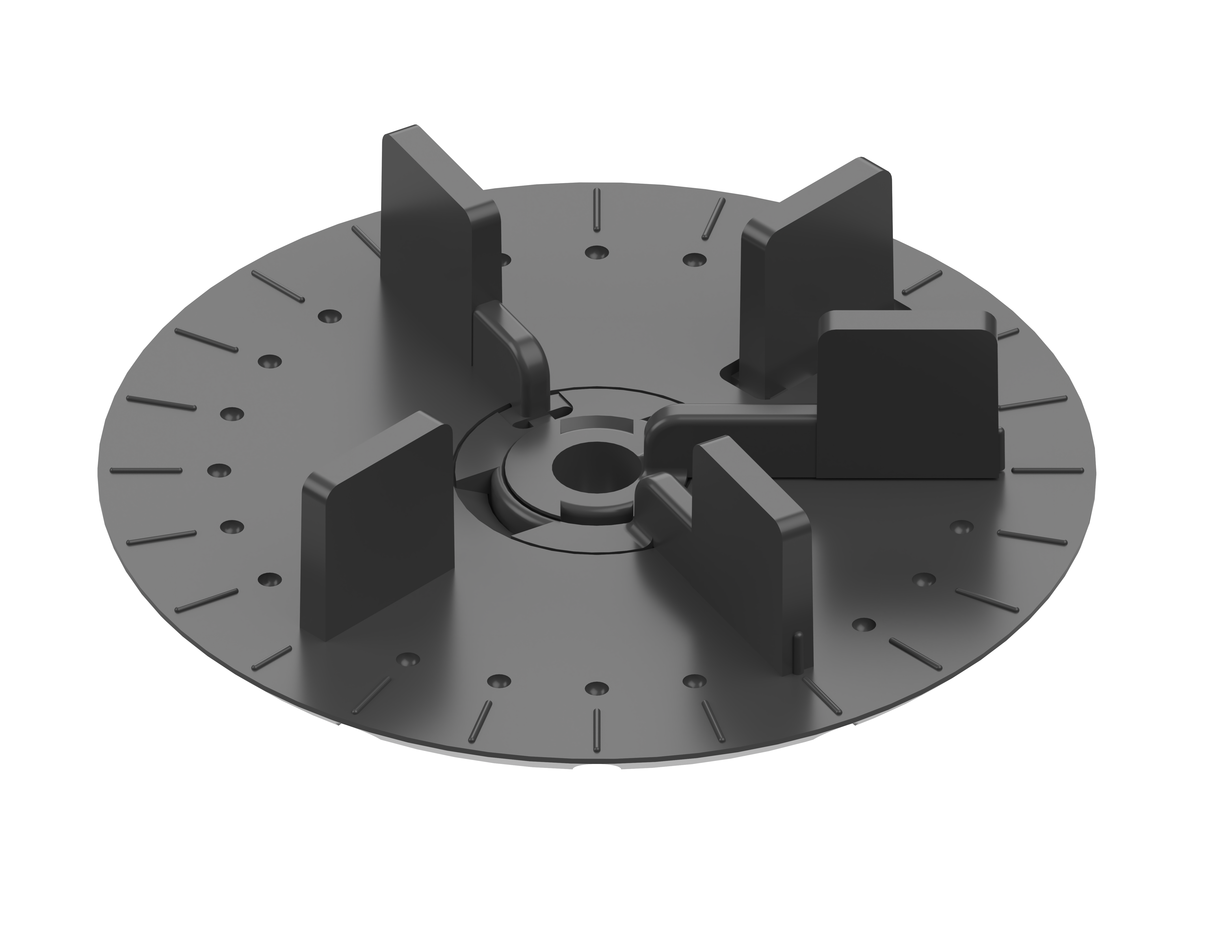

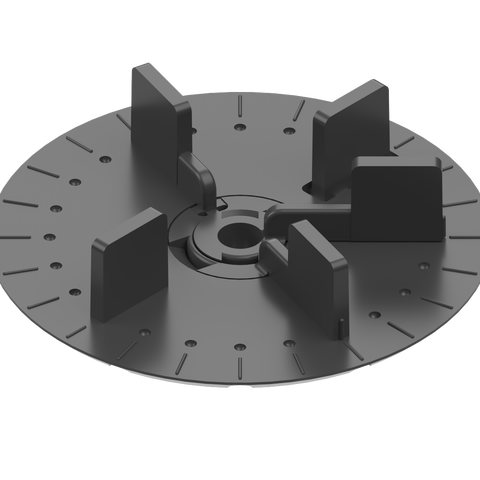

SikaRoof® VersiJack® Variable Angle Spacer Tab
SikaRoof® VersiJack® Variable Angle Spacer Tab is an accessory used on top of adjustable pedestals to create precise and uniform gaps for the alignment of pavers in raised flooring systems. Spacer tabs are manufactured from recycled polypropylene (PP) and it has movable tabs in intervals of 15º to change the spacer tab angle for non-right angled paver corners. SikaRoof® VersiJack® Variable Angle Spacer Tab may be manufactured with tabs of various thicknesses to create varying drainage gaps sizes, to support concrete pavers, stone pavers, and porcelain tiles that have a minimum thickness of 20 mm.
- Accommodates pavers with non-right angled corners
- Consistent paver gaps
- Promotes surface drainage
- Eliminates efflorescence
- Recyclable components
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Usage
Spacer tabs are used with adjustable pedestals for raised pavers flooring on podiums, balconies, roof terraces and areas with hardscape finishes.Advantages
- Accommodates pavers with non-right angled corners
- Consistent paver gaps
- Promotes surface drainage
- Eliminates efflorescence
- Recyclable components
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Packaging
- SikaRoof® VersiJack® Variable Angle Spacer Tab 3x15 (1 Tab)
- SikaRoof® VersiJack® Variable Angle Spacer Tab 4x15 (1 Tab)
- SikaRoof® VersiJack® Variable Angle Spacer Tab 3x15 (2 Tab)
- SikaRoof® VersiJack® Variable Angle Spacer Tab 4x15 (2 Tab)
Refer to pricelist
Colour
Black circular disc spacer tab
Product Details
CERTIFICATES AND TEST REPORTS
Singapore Green Building Product (Leader) Cert. No. SGBP 3254
Shelf life
No expiration date if the product is stored in accordance to the storage conditions as stated in this Product Data Sheet.
Storage conditions
Products must be stored in their original packing, in their original box, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements.
Thickness
Spacer Tab Thickness
| 3x15 (1 Tab) | 4x15 (1 Tab) | 3x15 (2 Tab) | 4x15 (2 Tab) |
| 3 mm | 4 mm | 3 mm | 4 mm |
Diameter
82 mm
Height
Spacer Tab Height
15 mm
Service temperature
- 30°C to 80°C
