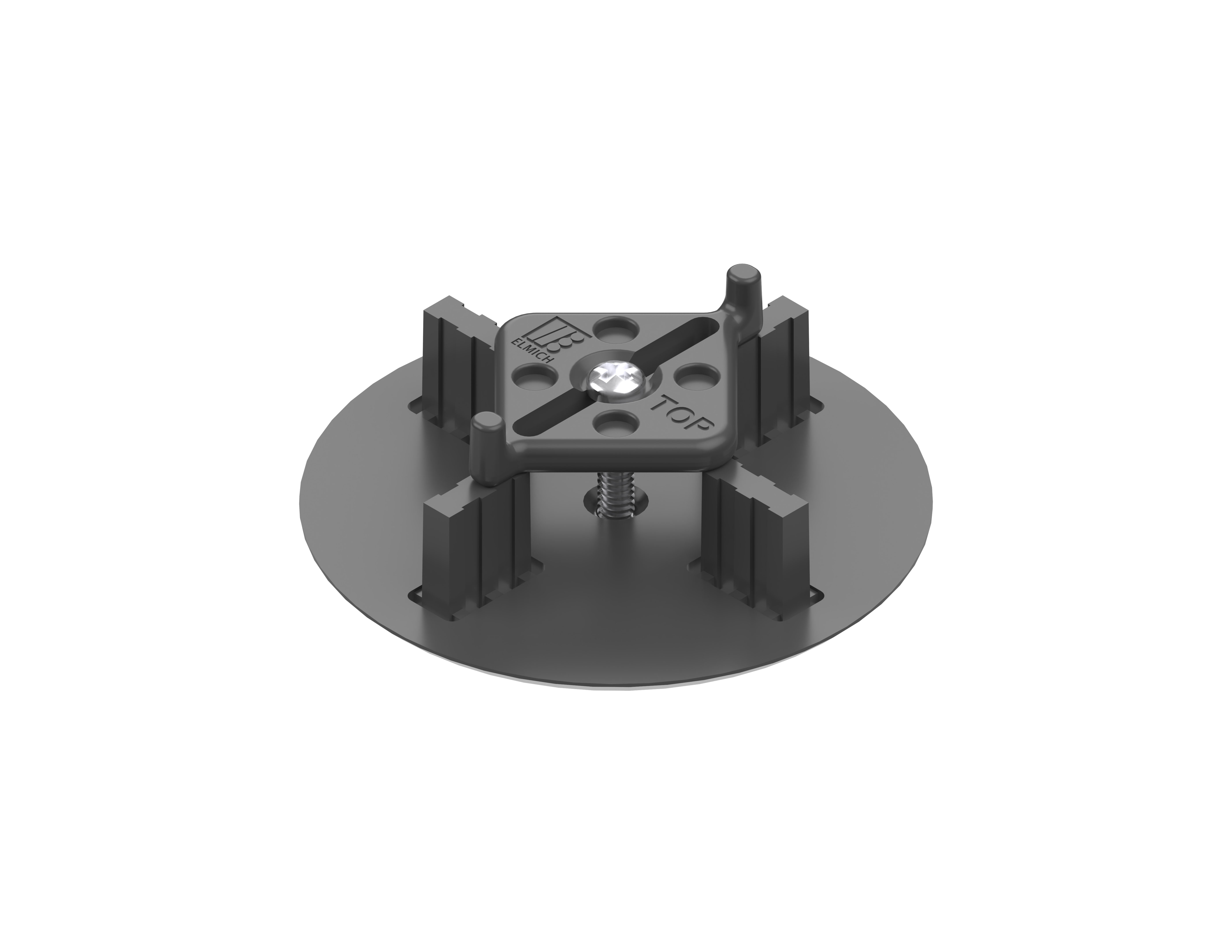

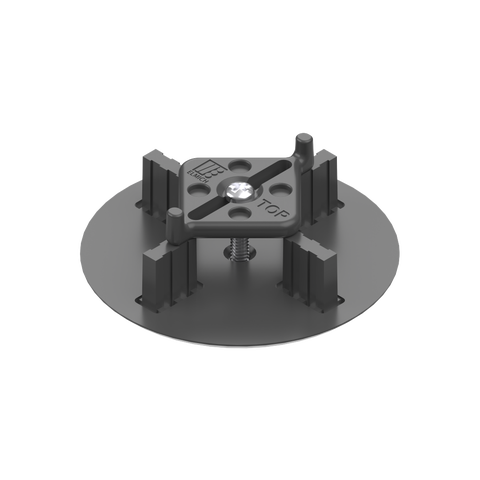

SikaRoof® VersiJack® Timber Tile Fastener
SikaRoof® VersiJack® Timber Tile Fastener is an accessory used on top of pedestals to secure timber tiles and create precise and uniform gaps for the alignment of timber tiles in raised flooring systems. Timber tile fasteners are manufactured from modified reinforced thermoplastics, and has a locking mechanism using a screw. SikaRoof® VersiJack® Timber Tile Fastener is used in conjunction with SikaRoof® VersiJack® and timber tiles, and it's locking mechanism locks into grooves on the sides of a timber tile.
- Consistent timber tile gaps
- Secures timber tiles to pedestals
- Promotes surface drainage
- Recyclable components
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Usage
Timber tile fasteners are used with adjustable pedestals for raised timber tile flooring on podiums, balconies, roof terraces and areas with hardscape finishes.Advantages
- Consistent timber tile gaps
- Secures timber tiles to pedestals
- Promotes surface drainage
- Recyclable components
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Packaging
- SikaRoof® VersiJack® DT Fastener 5x15 T30
- SikaRoof® VersiJack® DT Fastener 5x15 T50
Refer to pricelist
Colour
Back circular disc tile fastener
Product Details
Shelf life
No expiration date if the product is stored in accordance to the storage conditions as stated in this Product Data Sheet.
Storage conditions
Products must be stored in their original packing, in their original box, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements.
Thickness
Spacer Tab Thickness
5 mm
Diamond Fastener Thickness
| DT Fastener 5x15 T30 | DT Fastener 5x15 T50 |
| 3 mm | 5 mm |
Diameter
82 mm
Height
Spacer Tab Height
15 mm
Service temperature
- 30 °C to 115 °C
