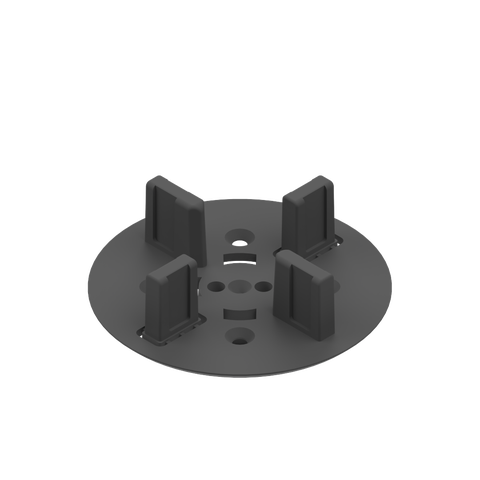

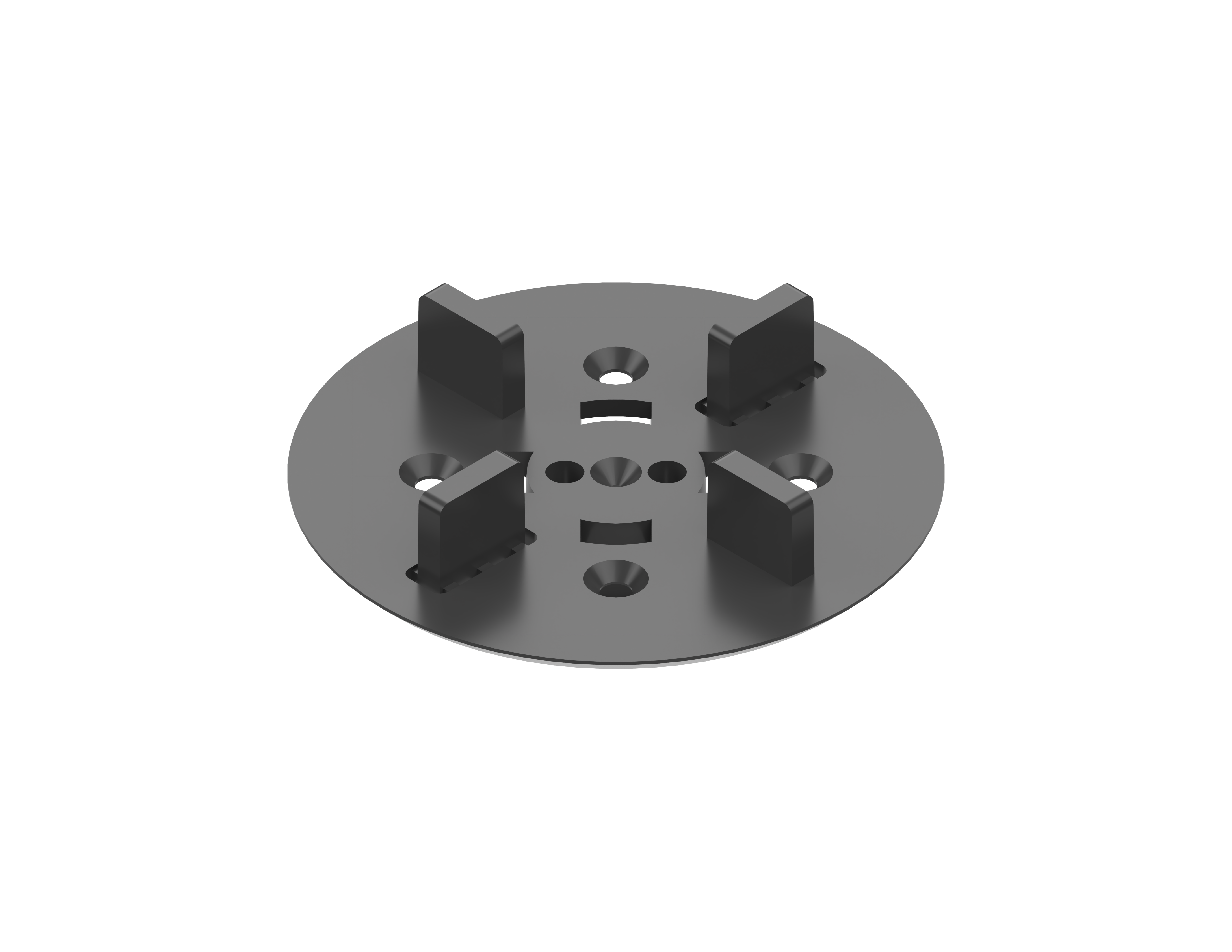

SikaRoof® VersiJack® Exposed Paver Retainer Spacer Tab
SikaRoof® VersiJack® Exposed Paver Retainer Spacer Tab is an attachment used on top of adjustable pedestals to secure pavers down and increase wind uplift resistance. Spacer tabs are manufactured from recycled polypropylene (PP) and is used in conjunction with SikaRoof® VersiJack® Exposed Paver Retainer to form a complete wind uplift system. SikaRoof® VersiJack® Exposed Paver Retainer Spacer Tab may be manufactured with tabs of various thicknesses to create varying drainage gaps sizes, to support concrete pavers, stone pavers, and porcelain tiles that have a minimum thickness of 20 mm.
- Exposed wind uplift solution
- Consistent paver gaps
- Promotes surface drainage
- Eliminates efflorescence
- Recyclable components
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Usage
Spacer tabs are used with adjustable pedestals for raised pavers flooring on podiums, balconies, roof terraces and areas with hardscape finishes to achieve wind uplift resistance.Advantages
- Exposed wind uplift solution
- Consistent paver gaps
- Promotes surface drainage
- Eliminates efflorescence
- Recyclable components
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Packaging
- SikaRoof® VersiJack® Exposed Paver Retainer Spacer Tab 4x12
- SikaRoof® VersiJack® Exposed Paver Retainer Spacer Tab 10x12
Refer to pricelist
Colour
Black circular spacer tab
Product Details
CERTIFICATES AND TEST REPORTS
Singapore Green Building Product (Leader) Cert. No. SGBP 3254
Shelf life
No expiration date if the product is stored in accordance to the storage conditions as stated in this Product Data Sheet.
Storage conditions
Bags must be stored in their original packing, in their original box, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements.
Dimensions
Ø 82 x 24 mm
Thickness
Spacer Tab Thickness
| 4x12 | 10x12 |
| 4 mm | 10 mm |
Service temperature
- 30°C to 80°C
