SikaRoof® VersiJack® Exposed Paver Retainer

SikaRoof® VersiJack® Exposed Paver Retainer

WIND UPLIFT REDUCTION SYSTEM FOR RAISED PAVERS FLOORING

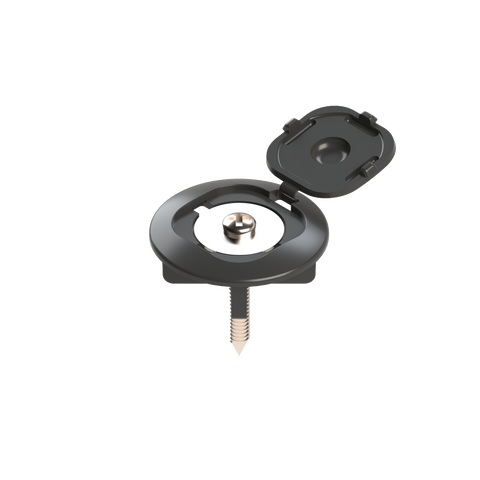

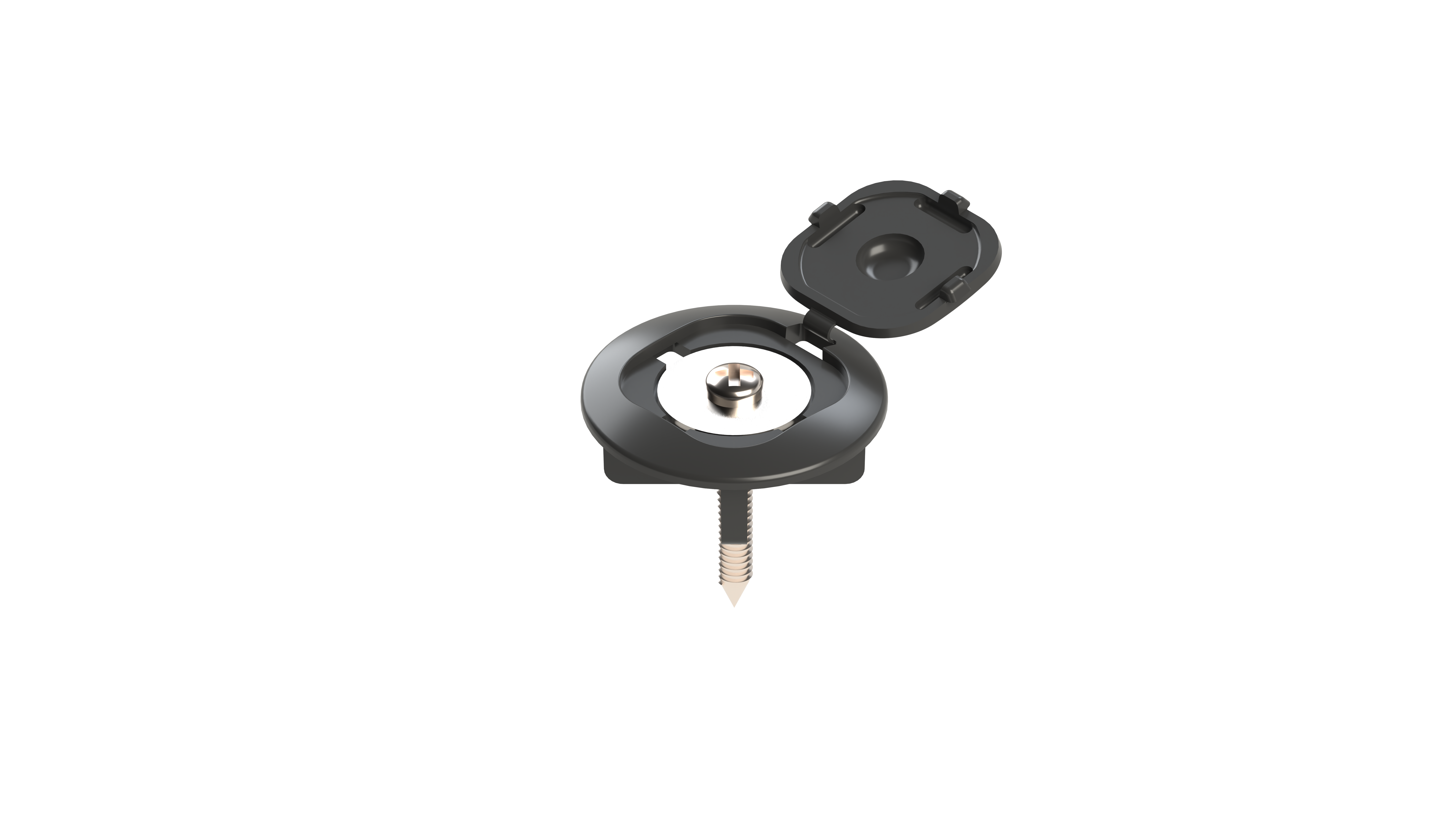

SikaRoof® VersiJack® Exposed Paver Retainer is an accessory to increase the wind uplift resistance of pavers in raised flooring applications. Exposed paver retainers are manufactured from recycled polypropylene (PP), and steel screw and washer, and it locks pavers onto a pedestal system to achieve wind uplift resistance. SikaRoof® VersiJack® Exposed Paver Retainer is used in conjunction with SikaRoof® VersiJack® and SikaRoof® VersiJack® Exposed Paver Retainer Spacer Tab and may be locked and unlocked to release the plates allowing pavers to be removed and reinstalled after completion.

  • Exposed wind uplift reduction
  • Removable wind uplift pavers
  • Access to waterproofing membrane
  • Eliminates efflorescence
  • Recyclable components
  • Resistant to biological attack by moulds and algae
  • Chemically resistant to acids, alkalis, oils and soil chemicals
  • Operates within a wide service temperature range
Product Data Sheet Show all documents

Usage

Exposed paver retainer system for raised paving installations on podiums, balconies, roof terraces and areas with hardscape finishes.

Advantages

  • Exposed wind uplift reduction
  • Removable wind uplift pavers
  • Access to waterproofing membrane
  • Eliminates efflorescence
  • Recyclable components
  • Resistant to biological attack by moulds and algae
  • Chemically resistant to acids, alkalis, oils and soil chemicals
  • Operates within a wide service temperature range

Packaging

  • SikaRoof® VersiJack® Exposed Paver Retainer

Refer to pricelist



Colour

Black circular small plate

Product Details

Sustainability / Certifications / Approvals

CERTIFICATES AND TEST REPORTS

  • Singapore Green Building Product (Leader) Cert. No. SGBP 3254
  • Wind Uplift Resistance Testing in accordance to Western Sydney University methodologies
Product Information

Shelf life

No expiration date if the product is stored in accordance to the storage conditions as stated in this Product Data Sheet.

Storage conditions

Product must be stored in their original packing, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements.
Technical Information

Pull-out resistance

Wind Uplift Resistance

(based on 600 x 600 x 20 mm tile)

2.5 kPa

Application

Application steps

SUBSTRATE PREPARATION

Clean and sound surface shall have at least a wood float finish. All holes, joints, and cracks and honeycombs in concrete or masonry surfaces shall be filled with an approved grout and allowed to cure. High spots in concrete or masonry surfaces shall be cut off or ground down to prevent damage/puncture to the pedestal base.

APPLICATION

SikaRoof® VersiJack® Exposed Paver Retainer shall be installed onto SikaRoof® VersiJack®. Pavers would be screwed into the retainer using steel screws. The first paver shall be installed to the correct elevation before using a levelling device to serve as a reference. Subsequent pavers shall be installed and checked to ensure consistent and correct elevation, till a sturdy and rigid raised flooring is obtained, free of rattling, squeaking or other noises.
