SikaRoof® VersiJack® Concealed Paver Retainer
SikaRoof® VersiJack® Concealed Paver Retainer is a hidden accessory to increase the wind uplift resistance of pavers in raised flooring applications. Concealed paver retainers are manufactured from recycled polypropylene (PP) and acrylonitrile butadiene styrene (ABS), and it uses plates adhered to the base of the paver before locking them into the system to achieve wind uplift resistance. SikaRoof® VersiJack® Concealed Paver Retainer is used in conjunction with SikaRoof® VersiJack® and may be locked and unlocked to release the plates allowing pavers to be removed and reinstalled after completion.
- Concealed wind uplift reduction
- Removable wind uplift panels
- Access to waterproofing membrane
- Eliminates efflorescence
- Recyclable components
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Usage
Concealed paver retainer system for raised paving installations on podiums, balconies, roof terraces and areas with hardscape finishes.Advantages
- Concealed wind uplift reduction
- Removable wind uplift panels
- Access to waterproofing membrane
- Eliminates efflorescence
- Recyclable components
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Packaging

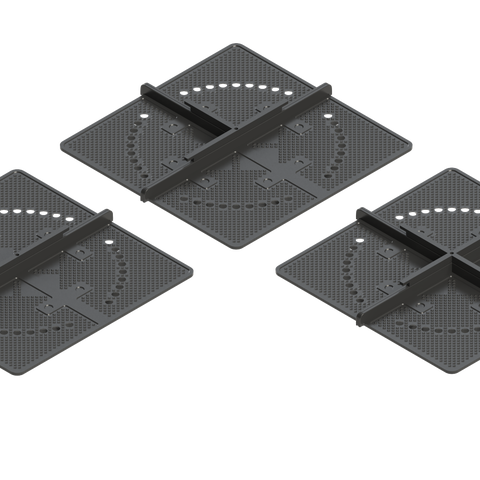

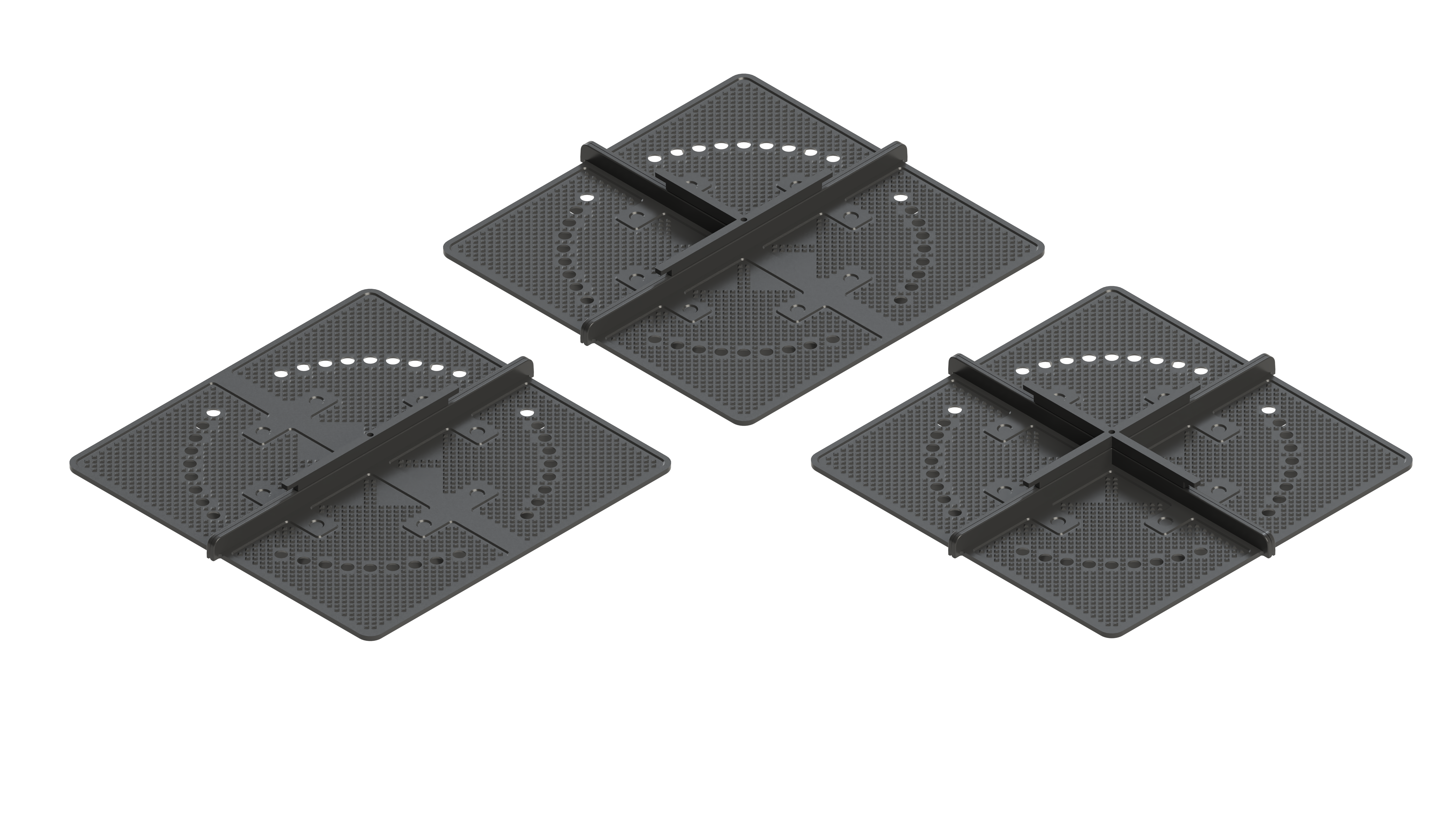

- SikaRoof® VersiJack® Concealed Paver Retainer I
- SikaRoof® VersiJack® Concealed Paver Retainer T
- SikaRoof® VersiJack® Concealed Paver Retainer X
Refer to pricelist
Colour
Black square plate
Product Details
CERTIFICATES AND TEST REPORTS
- Singapore Green Building Product (Leader) Cert. No. SGBP 3254
- Wind Uplift Resistance Testing in accordance to Western Sydney University methodologies
Shelf life
No expiration date if the product is stored in accordance to the storage conditions as stated in this Product Data Sheet.
Storage conditions
Product must be stored in their original packing, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements.
Dimensions
200 x 200 x 12.5 mm
Pull-out resistance
Wind Uplift Resistance
(based on 600 x 600 x 20 mm tile)
| Stack Pattern | Brick Pattern |
| 8 kPa | 10 kPa |
Service temperature
- 30 °C to 80 °C
Application
SUBSTRATE PREPARATION
Clean and sound surface shall have at least a wood float finish. All holes, joints, and cracks and honeycombs in concrete or masonry surfaces shall be filled with an approved grout and allowed to cure. High spots in concrete or masonry surfaces shall be cut off or ground down to prevent damage/puncture to the pedestal base.
APPLICATION
SikaRoof® VersiJack® Concealed Paver Retainer shall be installed onto SikaRoof® VersiJack®. Paver base would then be adhered onto the plates with an approved adhesive. The first paver shall be installed to the correct elevation before using a levelling device to serve as a reference. Subsequent pavers shall be installed and checked to ensure consistent and correct elevation, till a sturdy and rigid raised flooring is obtained, free of rattling, squeaking or other noises.
