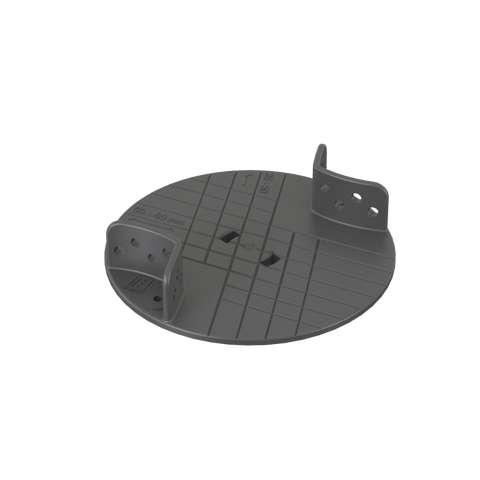

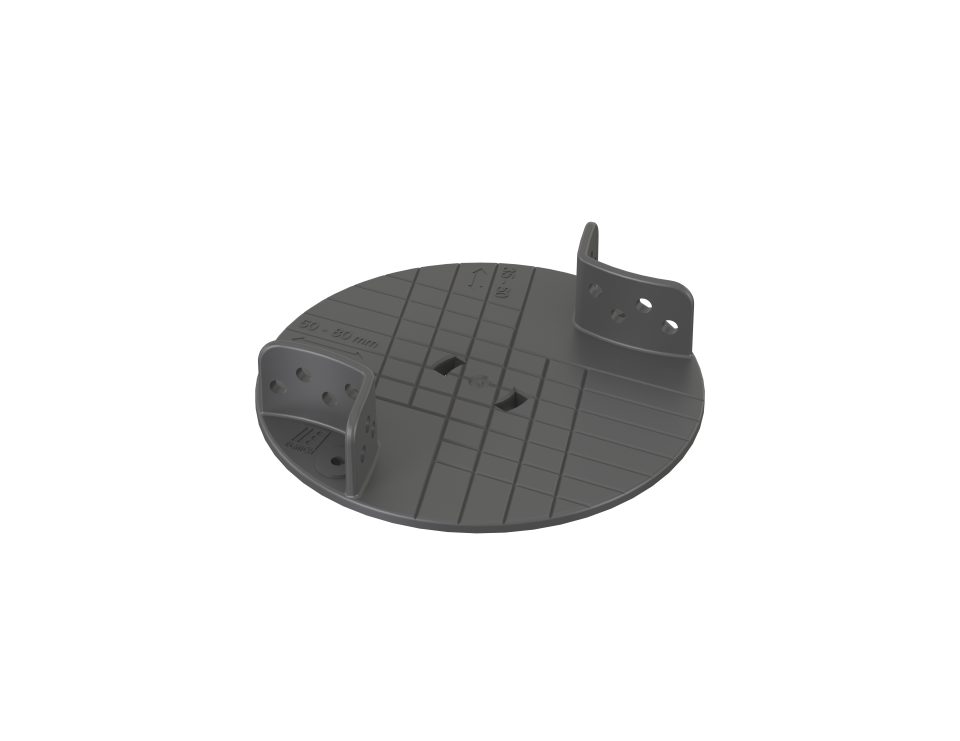

SikaRoof® VersiJack® Bearer Holder
SikaRoof® VersiJack® Bearer Holder is an accessory used to connect timber joists to the pedestal for receiving decking boards. Bearer holders are manufactured from recycled polypropylene (PP), and it has two wings to allow screwing into a timber joist giving it self-centering capabilities for increased stability. This bearer holder can accommodate joist widths of 35 mm to 80 mm. SikaRoof® VersiJack® Bearer Holder is used in conjunction with SikaRoof® VersiJack® and timber joists, and is installed between the pedestal and the joists with the timber screws.
- Self-centering timber joist
- Recyclable components
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Usage
Bearer holder for raised decking installations on podiums, balconies, roof terraces and areas with hardscape finishes.Advantages
- Self-centering timber joist
- Recyclable components
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Packaging
- SikaRoof® VersiJack® Bearer Holder Bi-axial
- SikaRoof® VersiJack® Bearer Holder Bi-axial with Clip
- SikaRoof® VersiJack® Bearer Holder Bi-axial High Wing
Refer to pricelist
Colour
Black circular disc with two extending wings
Product Details
CERTIFICATES AND TEST REPORTS
Singapore Green Building Product (Leader) Cert. No. SGBP 3254
Shelf life
No expiration date if the product is stored in accordance to the storage conditions as stated in this Product Data Sheet.
Storage conditions
Product must be stored in their original packing, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements.
Diameter
Ø 131 mm
Height
Wing Height
| Bi-axial | Bi-axial with Clip | Bi-axial High Wing |
| 25 mm | 25 mm | 45 mm |
Service temperature
- 30 °C to 80 °C
