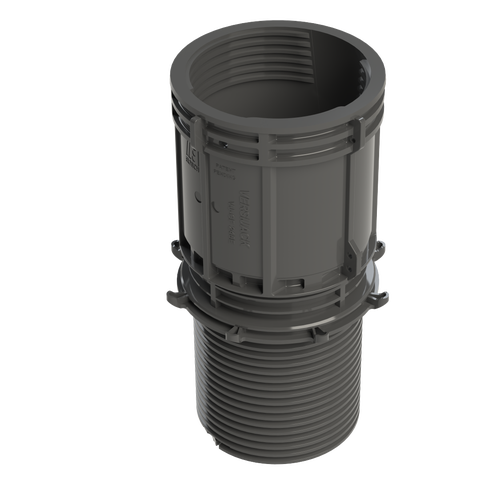

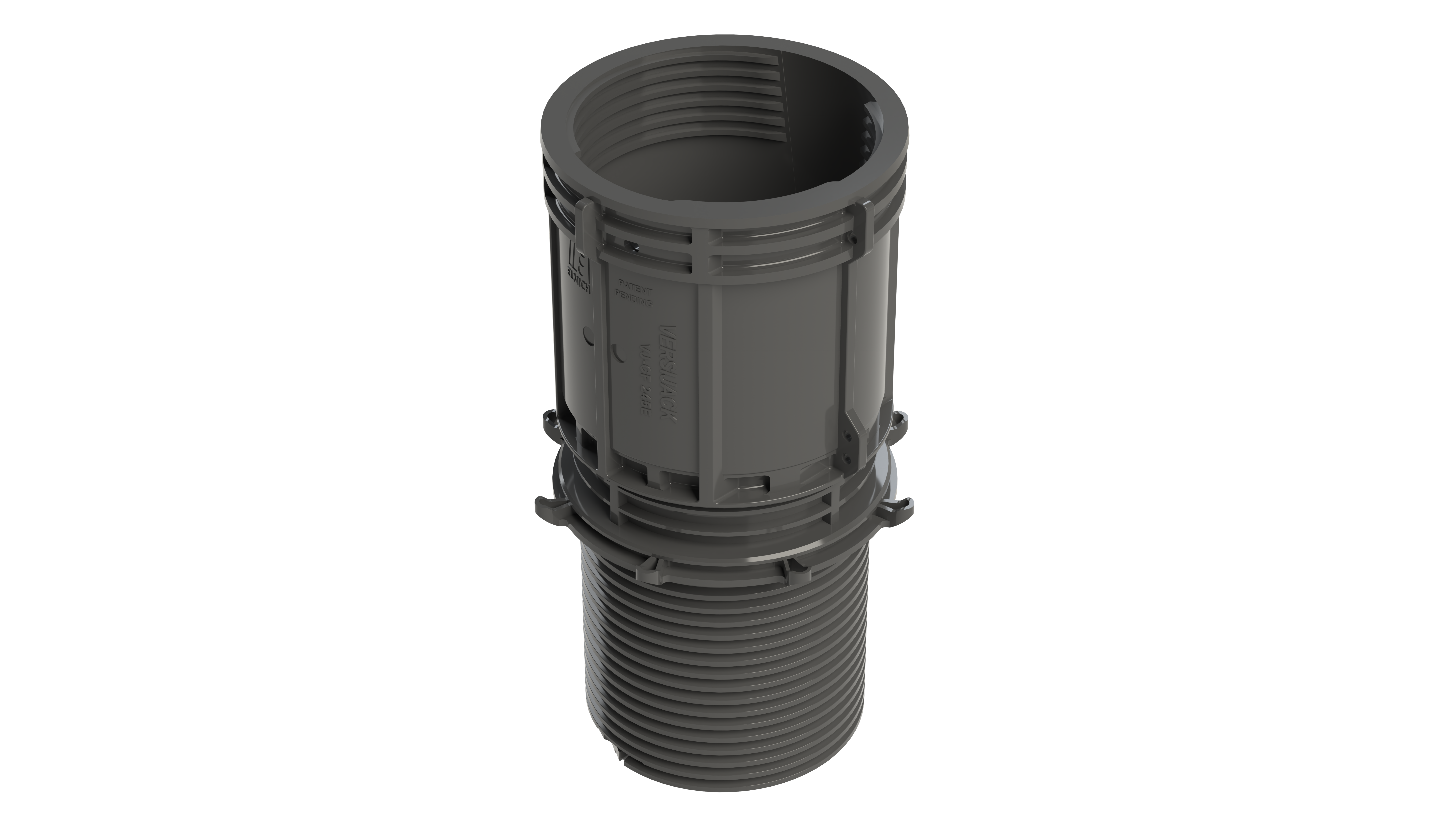

SikaRoof® VersiJack® Barrel Extender
SikaRoof® VersiJack® Barrel Extender is an accessory to increase the adjustable height of SikaRoof® VersiJack® pedestals. Barrel extenders are manufactured from recycled polypropylene (PP), while fire-rated pedestals are manufactured from modified reinforced thermoplastics, and it uses a screwjack mechanism to provide precise millimetric adjustments for SikaRoof® VersiJack® from 277 mm to 1,014 mm. SikaRoof® VersiJack® Barrel Extender is used in conjunction with SikaRoof® VersiJack® and is attached between pedestal tops and bases.
- Height extender for screwjack pedestal system
- Recyclable components
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Usage
Barrel extender for raised paving installations on podiums, balconies, roof terraces and areas with hardscape finishes.Advantages
- Height extender for screwjack pedestal system
- Recyclable components
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Packaging
- SikaRoof® VersiJack® CF 245E
- SikaRoof® VersiJack® CF 245E FR
Refer to pricelist
Colour
Black cylindrical extender
Product Details
CERTIFICATES AND TEST REPORTS
Singapore Green Building Product (Leader) Cert. No. SGBP 3254
Shelf life
No expiration date if the product is stored in accordance to the storage conditions as stated in this Product Data Sheet.
Storage conditions
Product must be stored in their original packing, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements.
Dimensions
130 Ø x 265 mm
Height
Height Extension
160 – 245 mm
Reaction to fire
SikaRoof® VersiJack® CF 245E FR
| Toxicity Emission | CIT < 0.75 |
| Smoke Density | s1 |
| Fire Spread | Class Bfl |
Service temperature
- 30 °C to 80 °C
Application
SUBSTRATE PREPARATION
Clean and sound surface shall have at least a wood float finish. All holes, joints, and cracks and honeycombs in concrete or masonry surfaces shall be filled with an approved grout and allowed to cure. High spots in concrete or masonry surfaces shall be cut off or ground down to prevent damage/puncture to the pedestal base.
APPLICATION
SikaRoof® VersiJack® Barrel Extender shall be installed with SikaRoof® VersiJack®.
