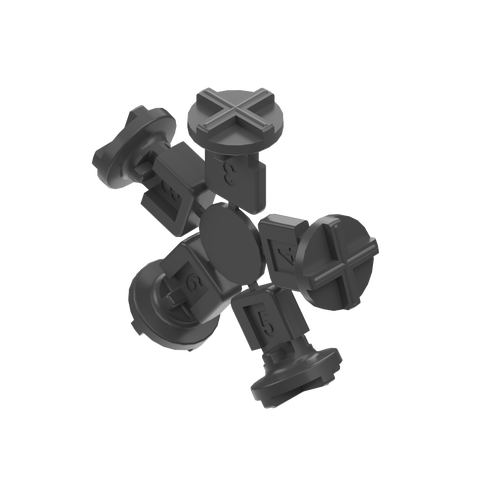

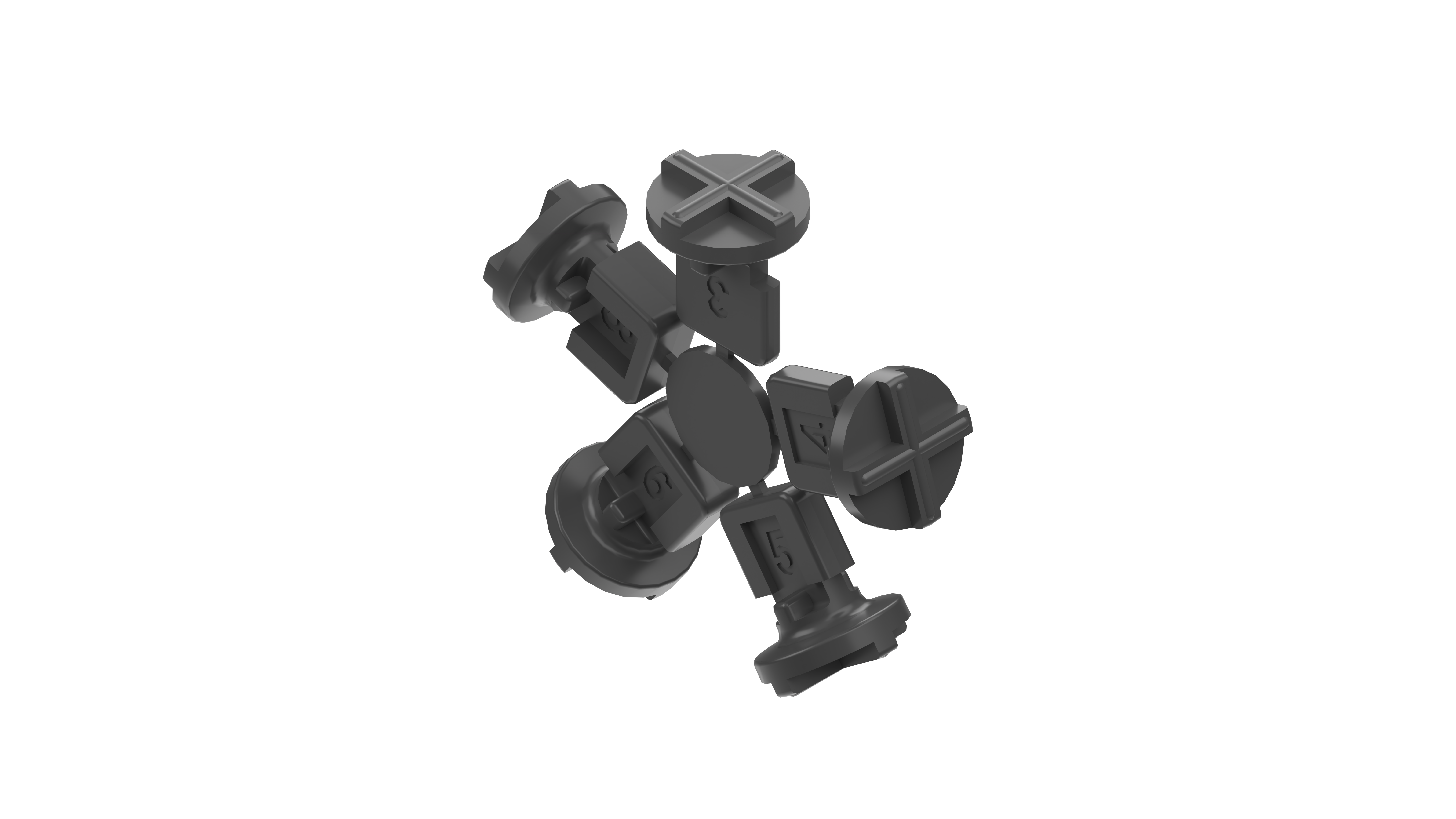

SikaRoof® VersiFrame Edge Support Spacer Tab
SikaRoof® VersiFrame Edge Support Spacer Tab is a spacer tab used on top of edge supports to create precise and uniform gaps for the alignment of pavers in raised flooring systems. Spacer tabs are manufactured from recycled polypropylene (PP), and it rotates 360° to be able to support narrow or non-right angled pavers to be installed along perimeter wall, bridge over obstructions on the roof, and support odd-shaped pavers to achieve unique patterns and layouts of raised flooring. SikaRoof® VersiFrame Edge Support Spacer Tab is used in conjunction with SikaRoof® VersiFrame Edge Support and is placed in three possible rails to maximise variation in spacer tab placement to support as many unique paver designs as possible.
- Increased paver design capabilities
- Promotes surface drainage
- Eliminates efflorescence
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Usage
Spacer tabs are used with edge supports for raised flooring on podiums, balconies, roof terraces and areas with hardscape finishes.Advantages
- Increased paver design capabilities
- Promotes surface drainage
- Eliminates efflorescence
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Packaging
- SikaRoof® VersiFrame Edge Support Spacer Tab 3.0
- SikaRoof® VersiFrame Edge Support Spacer Tab 4.0
- SikaRoof® VersiFrame Edge Support Spacer Tab Multiple
Refer to pricelist
Colour
Black circular set of 5 spacer tabs
Product Details
Shelf life
No expiration date if the product is stored in accordance to the storage conditions as stated in this Product Data Sheet.
Storage conditions
Products must be stored in their original packing, in their original box, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements.
Dimensions
Ø 62 x 14 mm
Thickness
Spacer Tab Thickness
SikaRoof® VersiFrame Edge Support Spacer Tab
| 3.0 | 4.0 | Multiple |
| 3 mm | 4 mm | Varied |
Service temperature
- 30 °C to 80 °C
