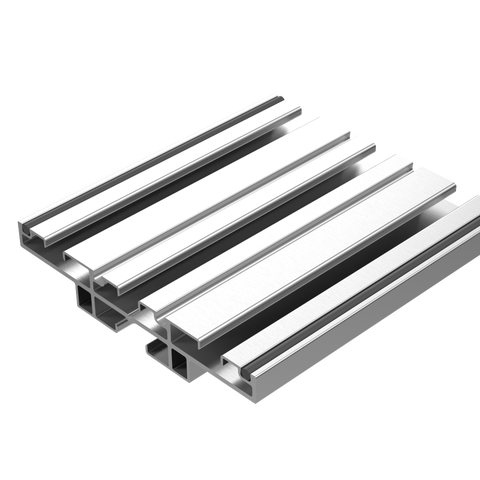

SikaRoof® VersiFrame Edge Support

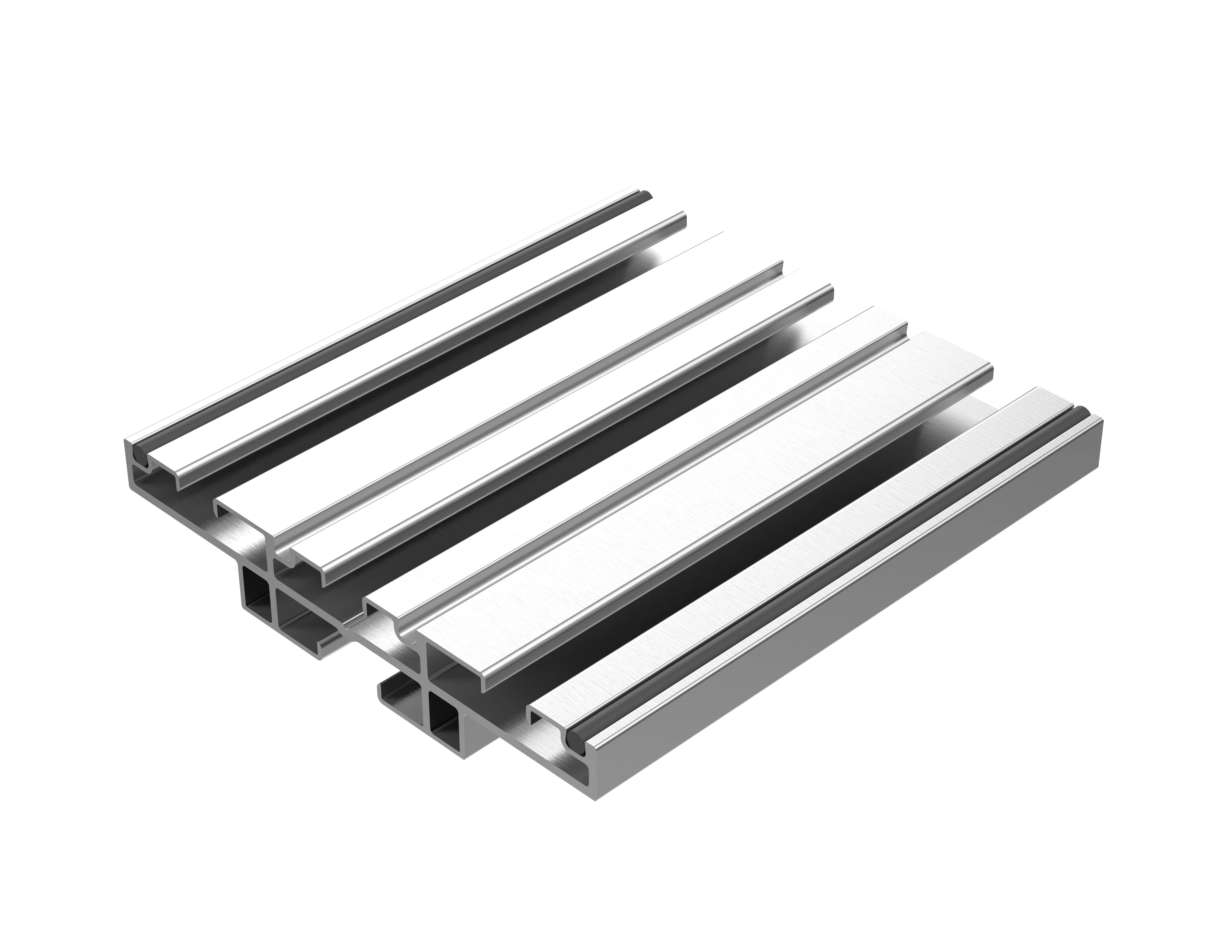

SikaRoof® VersiFrame Edge Support is a support system used on top of adjustable pedestals to cantilever, bridge and support irregular pavers in raised flooring systems. Joists are manufactured from aluminium, and its proprietary design allows for installation of narrow or non-right angled pavers to be installed along perimeter wall, bridge over obstructions on the roof, and support odd-shaped pavers to achieve unique patterns and layouts of raised flooring. SikaRoof® VersiFrame Edge Support is used in conjunction with SikaRoof® VersiJack® and has three rails to maximise variation in spacer tab placement to support as many unique paver designs as possible.
- Increased paver design capabilities
- Promotes surface drainage
- Eliminates efflorescence
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
Usage
Edge supports are used with adjustable pedestals for raised flooring on podiums, balconies, roof terraces and areas with hardscape finishes.Advantages
- Increased paver design capabilities
- Promotes surface drainage
- Eliminates efflorescence
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
Packaging
- SikaRoof® VersiFrame Edge Support
Refer to pricelist
Colour
Silver flat aluminium joist
Product Details
Shelf life
No expiration date if the product is stored in accordance to the storage conditions as stated in this Product Data Sheet.
Storage conditions
Products must be stored in their original packing, in their original box, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements.
Dimensions
2,400 x 140 x 25 mm
Coefficient of thermal expansion
2.34 x10-5 K-1
