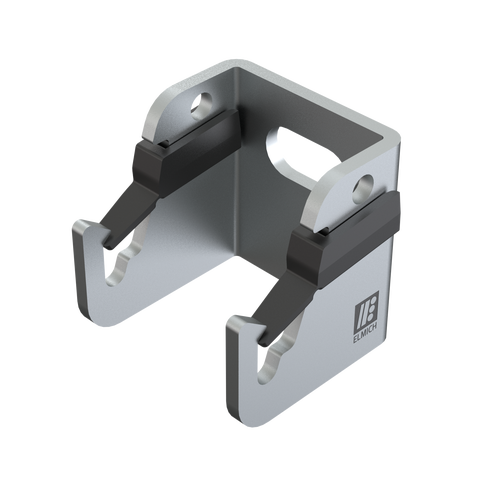

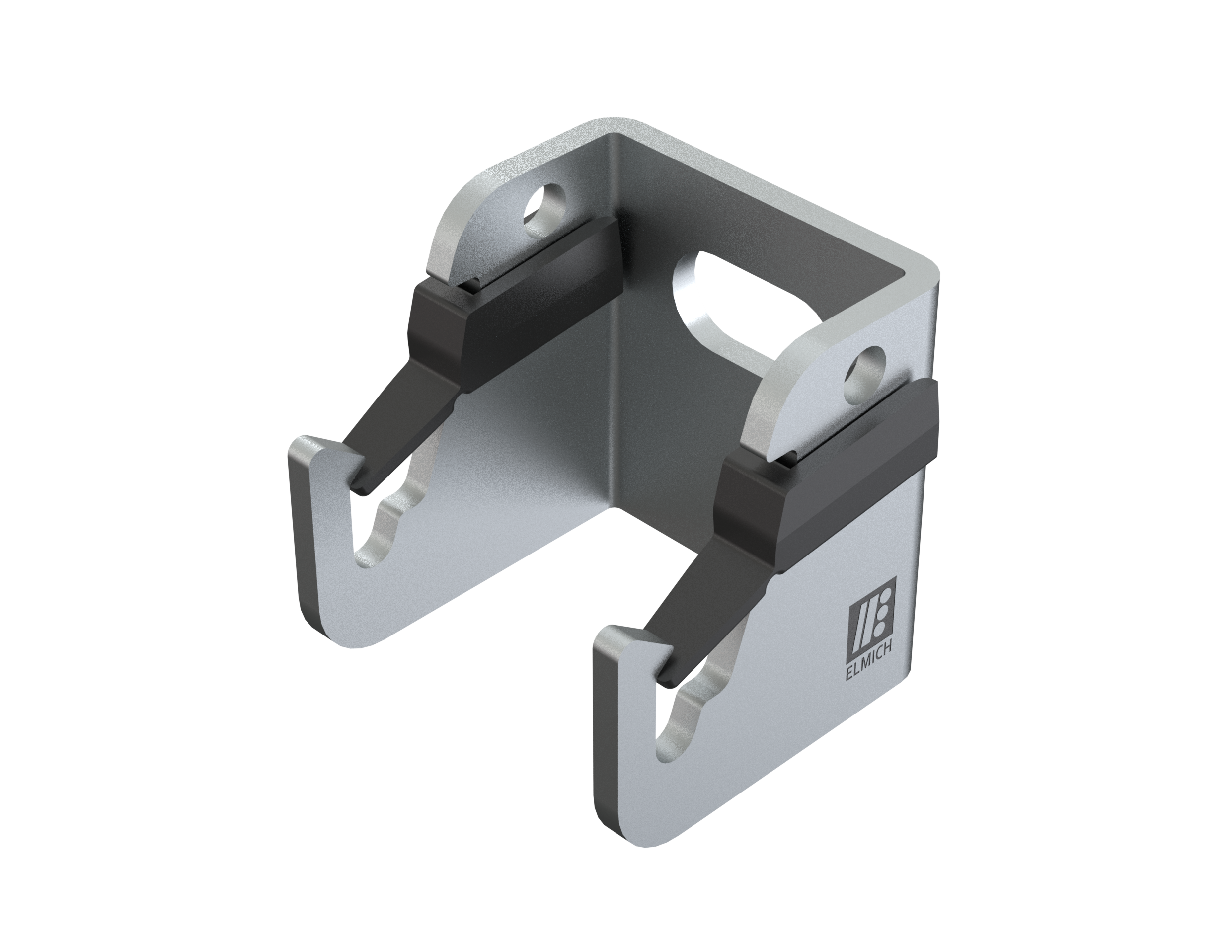

SikaRoof® VersiWall GP Mesh Bracket
SikaRoof® VersiWall GP Mesh Bracket is a bracket to mount steel wire meshes onto walls to create green wall facades. Brackets are manufactured from stainless steel (SUS 304), and it has two anti-lift arms to prevent removal of the wire mesh. SikaRoof® VersiWall GP Mesh Bracket is used in conjunction with SikaRoof® VersiWall GP 2060, SikaRoof® VersiWall GP 2020, SikaRoof® VersiWall GP 250 and SikaRoof® VersiWall GP 150 with a steel wire mesh to create a green wall system.
- Bracket to hold steel wire mesh
- Anti-lift arms
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
Usage
Brackets are used to create green walls on either internal or external wall facades.Advantages
- Bracket to hold steel wire mesh
- Anti-lift arms
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
Packaging
- SikaRoof® VersiWall GP Mesh Bracket SUS304
Refer to pricelist
Colour
Silver bracket with two hooks and two anti-lift arms
Product Details
Shelf life
No expiration date if the product is stored in accordance to the storage conditions as stated in this Product Data Sheet.
Storage conditions
Products must be stored in their original packing, in their original box, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements.
Dimensions
45 x 40 x 42 mm
Resistance to static loading
110 kg/m2
Shear strength
117 N/mm2
